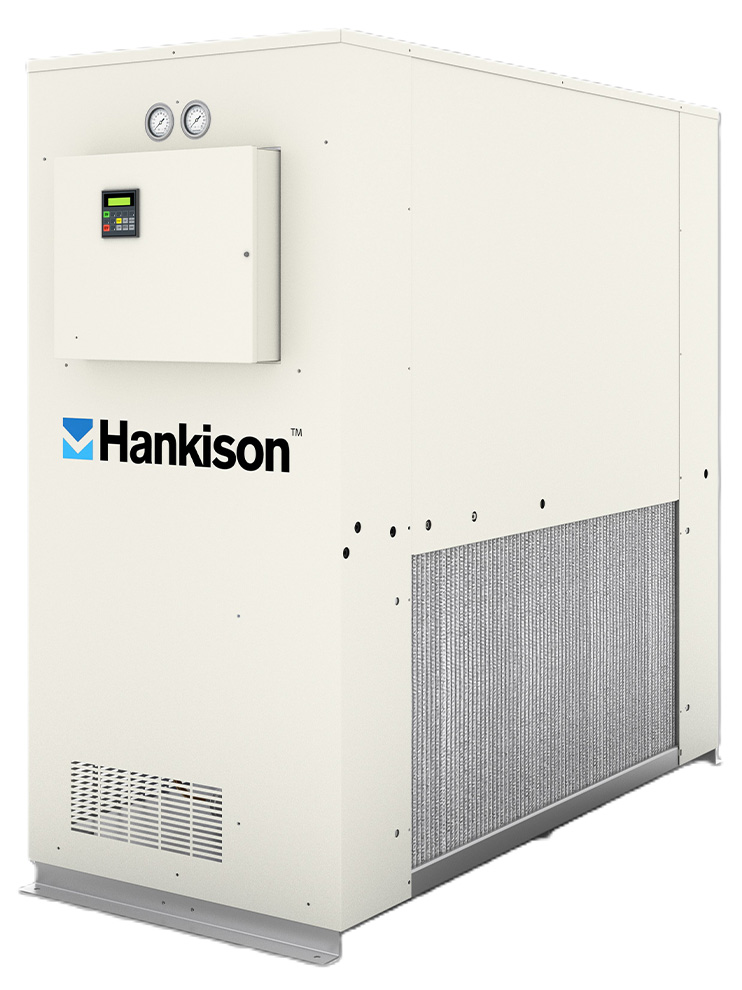

Hankison HHPR Series High Pressure Refrigerated Air Dryer

115 to 2410 SCFM, air cooled, 680 PSIG max pressure.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $6,185.45
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 115 to 2410 SCFM
  • 680 PSIG max pressure
  • 120°F max air inlet temperature
  • Condensate Management:
    • HHPR-115 to HHPR-200: Solenoid drain valve
    • HHPR-350 to HHPR-2400: Timed electric condensate drain

Hankison recommends the HF Series High Pressure Filter to be used as prefilters and afterfilters. Please see the Prefilter and Afterfilter Chart in the documents tab for more details.

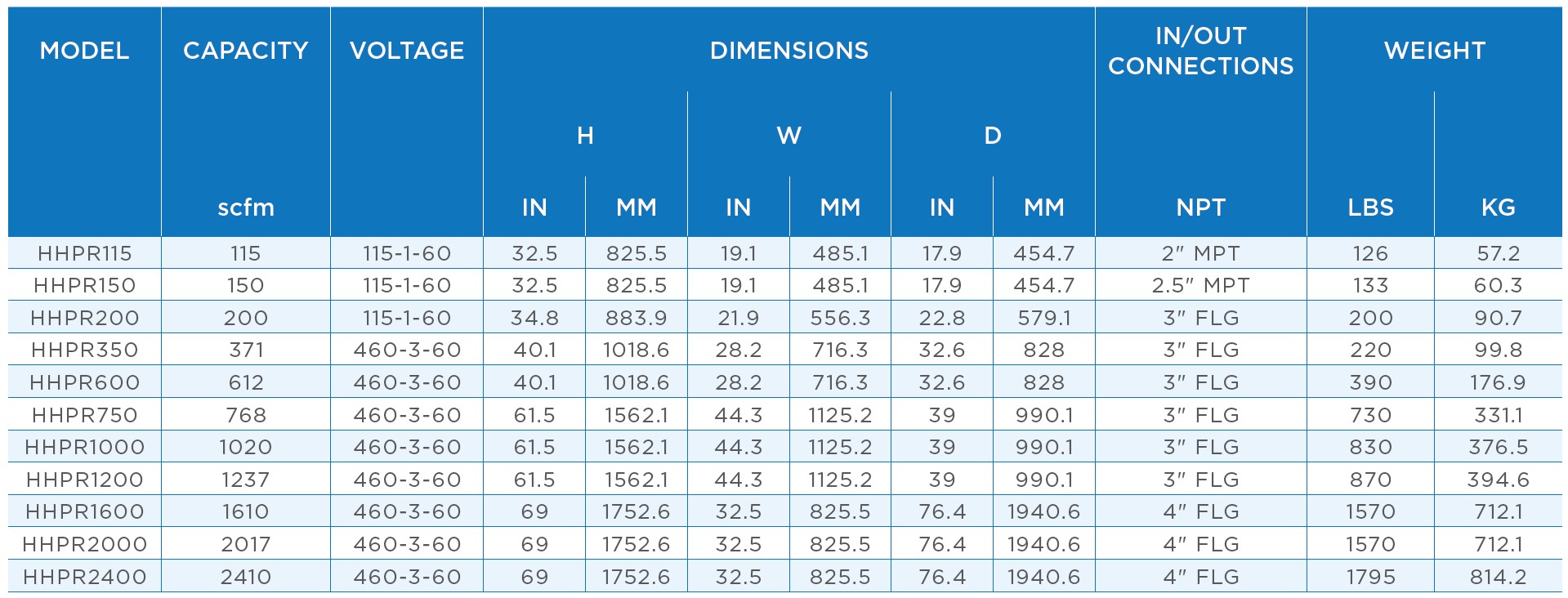

Tech Specs

Hankison HHPR Series High Pressure Refrigerated Air Dryer Tech Specs

The Hankison HHPR Series High Pressure Refrigerated Air Dryer removes water vapor, solid particulate and oil aerosols and vapor for efficient compressed air systems. Designed for up to 680 PSIG operation, applications for the HHPR Series dryer includes blow molding, aeronautical valve testing, pharmaceutical packaging and injection molding. Hankison HHPR Series dryers are built to UL standards and offer time-tested, field proven technology guaranteed to provide years of trouble free service.
