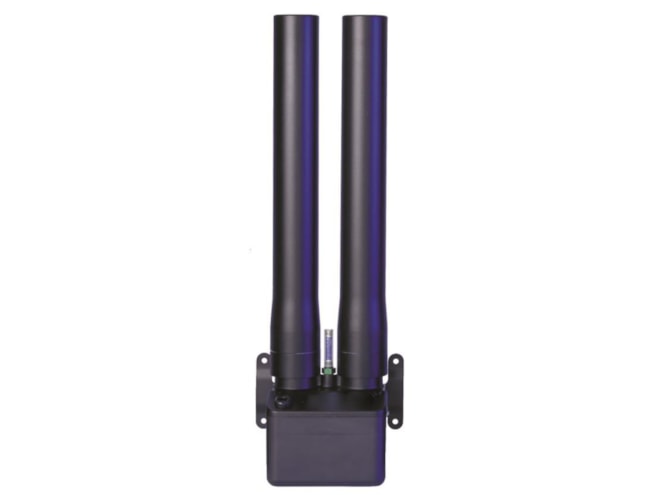

Altec AIR VSA4-21, 12.0 SCFM Heatless Regenerative Desiccant Air Dryer

-40°F, 240/1/60, 3.2 SCFM purge, 1/4" NPT. View other configurations.

Altec AIR VSA4-21, 12.0 SCFM Heatless Regenerative Desiccant Air Dryer — Altec AIR VSA Series Heatless Regenerative Desiccant Dryer - 12 SCFM Model

$2,289.00 $1,945.65

Request Quick Quote

Get Business Financing!
Payments as low as $68/mo

View Company Reviews

Part Number

VSA4-21

Highlights...

Features

12 SCFM
120°F max inlet temperature
150 PSI max pressure
Solid-state timer with built-in memory
Fixed orifice purge control
Dual inlet and outlet port configurations
-40°F standard outlet dew point
240/1/60 voltage

View Other Configurations

The Altec AIR VSA4-21, 12.0 SCFM Heatless Regenerative Desiccant Air Dryer utilizes Pressure Swing Adsorption (PSA) technology. Compressed air is passed through the inlet to one desiccant tower where water vapor is removed. The dry air then continues to the outlet side of the manifold and out to the application. A portion of the dried air is expanded through an orifice and directed back through the offline desiccant tower where the accumulated moisture is purged. The solid-state timer and two solenoid valves reverse the process.

Spec Sheets

Altec AIR VSA Series Heatless Regenerative Desiccant Dryer Datasheet (355 KB)

Manuals

Altec AIR VSA Series Heatless Regenerative Desiccant Dryer Manual (1.1 MB)
