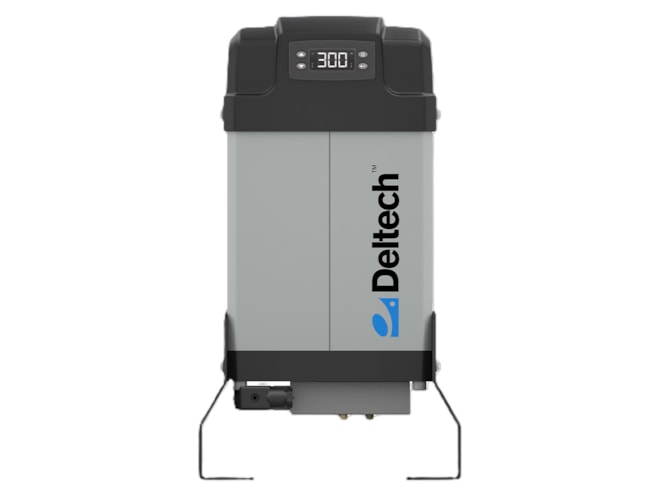

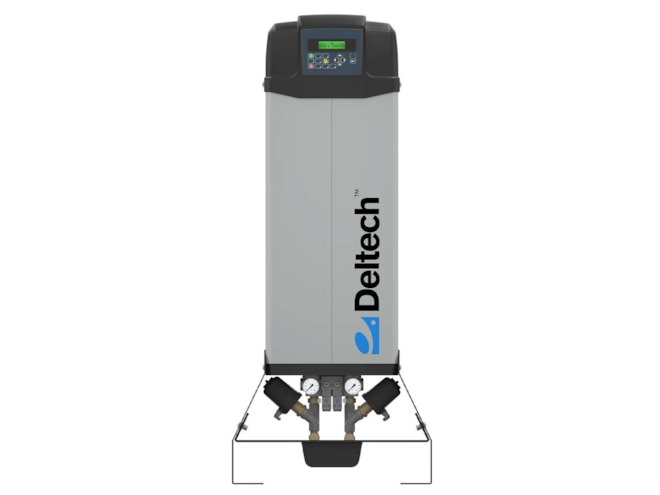

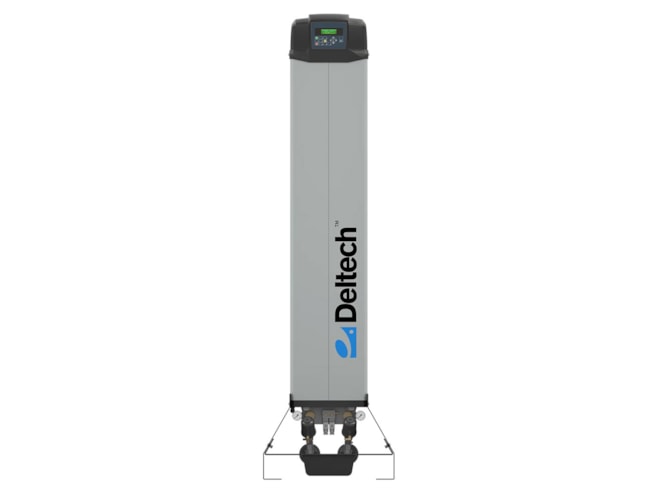

Deltech DHDM Series Modular Heatless Desiccant Air Dryer

3 to 177 SCFM dryer, delivers dew points of ISO 8573-1: 2010 Class 1 (-94°F, -70°C) and Class 2 (-40°F, -40°C).

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 3 to 177 SCFM
  • NGF Series Filter Packages Standard:
    • Grade H3 coalescing prefilter captures oil down to 0.008 mg/m3
    • Grade P3 afterfilter removes solids 1.0 micron and larger
  • -40°F dewpoint standard, -100°F optional
  • EMS controller option available (24 to 177 SCFM only)

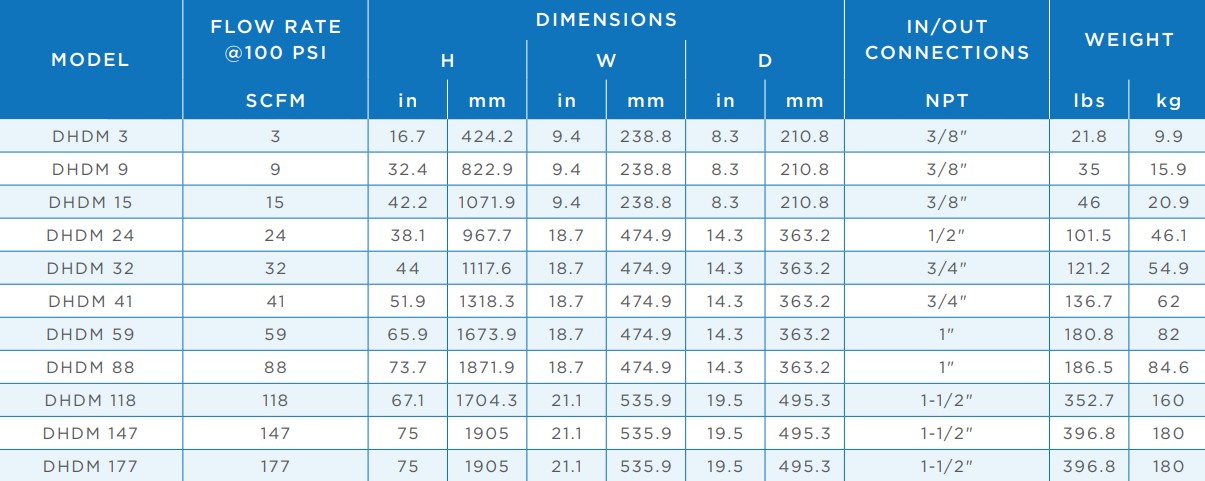

Tech Specs

Deltech DHDM Series Modular Heatless Desiccant Air Dryer Tech Specs

The Deltech DHDM Series Modular Heatless Desiccant Air Dryer is ideal for point of use, laboratories and confined areas. They provide a continuous supply of dry compressed air by automatically cycling the flow of air through two desiccant beds. The DHDM Series features robust communications, is CSA/UL approved, and CRN registered. As powerful as it is versatile, the DHDM Series is designed and proven to protect moisture-sensitive applications requiring low-pressure dew points by delivering dew points of  ISO 8573-1: 2010 Class 1 (-100°F, -70°C) and Class 2 (-40°C).
