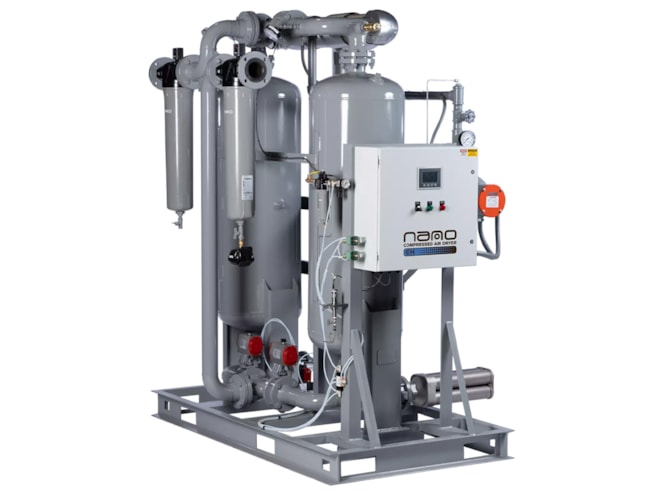

nano-purification solutions EH Series Externally Heated Twin Tower Desiccant Air Dryer

150 to 3000 SCFM, -40°F dewpoint standard, ISO 8573.1:2010 air quality.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $30,977.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 150 to 3000 SCFM
  • Max operating pressure:
    • EH 0150 to EH 1500: 180 PSIG
    • EH 2000 to EH 3000: 135 PSIG
  • 120°F max inlet air temperature
  • Mounted pre-filter and after-filter standard
  • 460/3/60 power supply standard, 575/3/60 optional
  • ISO 8573.1:2010 air quality
  • ASME code pressure vessels
  • UL/cUL compliant

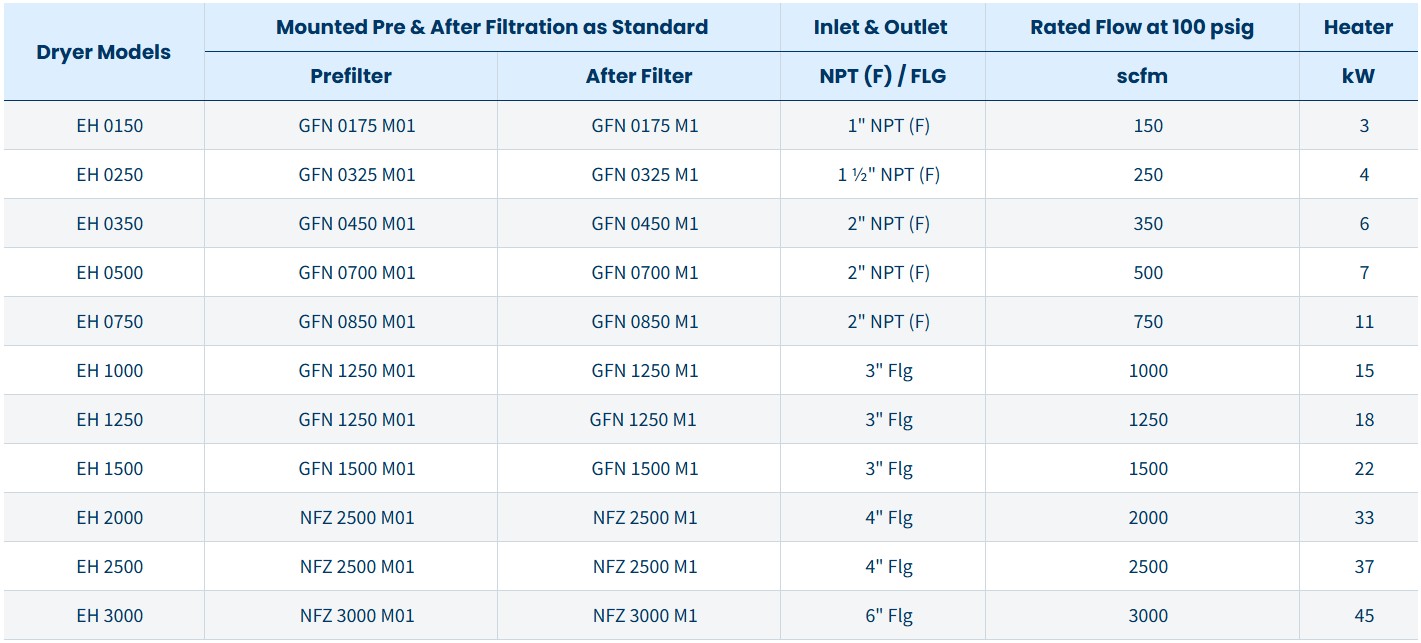

Tech Specs

nano-purification solutions EH Series Externally Heated Twin Tower Desiccant Air Dryer Tech Specs

The nano-purification solutions EH Series Externally Heated Twin Tower Desiccant Air Dryer is ideal for industries that require reliable, moisture-free compressed air. These high-performance dryers are designed to achieve a pressure dew point of -40°F, ensuring dry, clean air in the most demanding industrial environments. The nano EH Series reduces pressure drop while maintaining consistent dew point performance. By using only 6 to 8% of compressed air for purging, these dryers conserve valuable resources and help lower operational costs.
