Jenny Two-Stage Stationary Piston Air Compressor

Heavy-duty two-stage cast iron compressor pump mounted to air receiver tank.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $3,466.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Simplex options: 2 to 25 HP
    • 7.1 to 83 CFM at 175 PSI
  • Duplex options: 10 to 50 HP
    • 30.4 to 166 CFM at 175 PSI
  • Splash lubricated
  • Belt driven with a large flywheel
  • Directional air shroud
  • Enclosed heavy-duty belt guard
  • Large canister intake filter with replaceable filter elements
  • Pressure relief safety valve
  • Manual tank drain
  • Tank gauge included
  • 60, 80, 120, or 240 gallon air tanks available
  • Auto start/stop control with pressure unloader set at 145 to 175 PSI
  • Magnetic starter is included on all 5 HP and larger units
  • Filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil

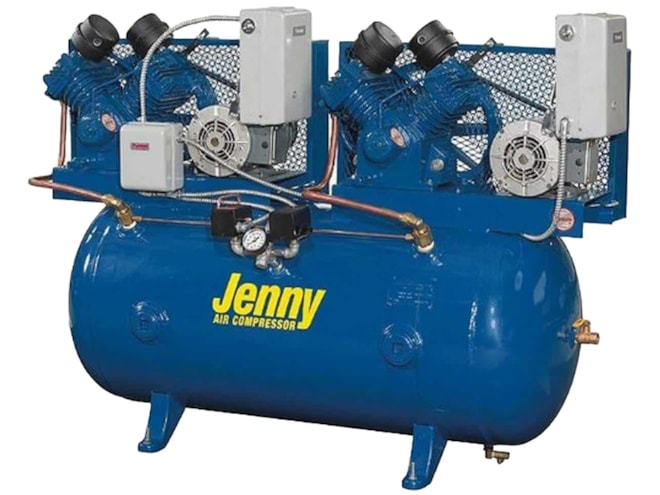

The Jenny Two-Stage Stationary Piston Air Compressor is a heavy-duty cast iron compressor pump mounted to an ASME air receiver tank (vertical or horizontal options available). It is available in 2 to 25 HP (simplex) and 10 to 50 HP (duplex) configurations with capacities up to 166 CFM at 175 PSI. The splash-lubricated pump is belt-driven with a large flywheel for extra cooling and easier start-up. Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil for peak performance.
