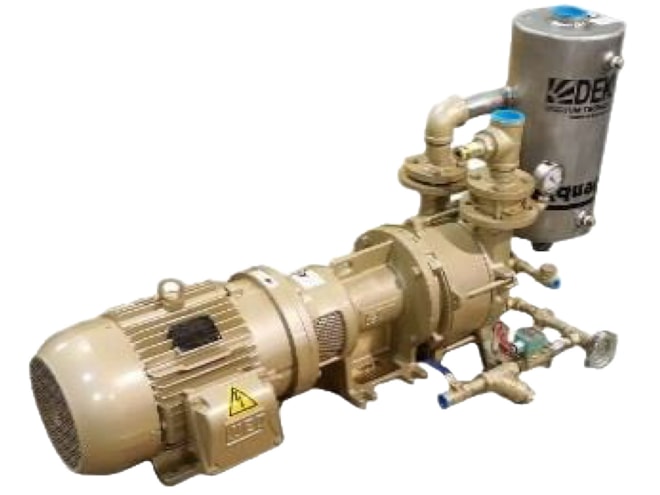

Dekker AquaSeal Stainless Steel Liquid Ring Water-Sealed Vacuum Pump System

29" HgV max vacuum pump with all-wetted 316 stainless steel materials.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $12,888.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Titan single-stage motor-mounted or monoblock liquid ring vacuum pump
    • 316SS casing, portplate, and impeller
    • Teflon mechanical shaft seal
  • 230/460V, 3phase, 60Hz motor
  • Vacuum gauge (no/partial recovery models)
  • Compound, temperature, and vacuum gauge (full recovery models)
  • Seal fluid make-up solenoid valve 110VAC
  • Inlet check valve
  • Pump drain valve (only on 7.5 HP and up)
  • Baseplate or skid frame depending on model selected

The Dekker AquaSeal Stainless Steel Liquid Ring Water-Sealed Vacuum Pump System is available in capacities from 20 to 550 ACFM. Backed by Dekker's own Titan vacuum pumps, these systems can create a maximum vacuum 29" HgV. AquaSeal systems can use various seal fluids depending on the application.

System configurations offered:

  • No Recovery
    • Water fed to the vacuum pump is discharged down the drain or used for another purpose.
  • Partial Recovery
    • About 50% of the seal water is re-circulated while fresh seal water is added for make-up. Consideration must be given to heat build-up.
  • Full Recovery
    • Close to 100% of the seal water is recovered and reused. Because of heat build-up, a heat exchanger might need to be used for this configuration.
