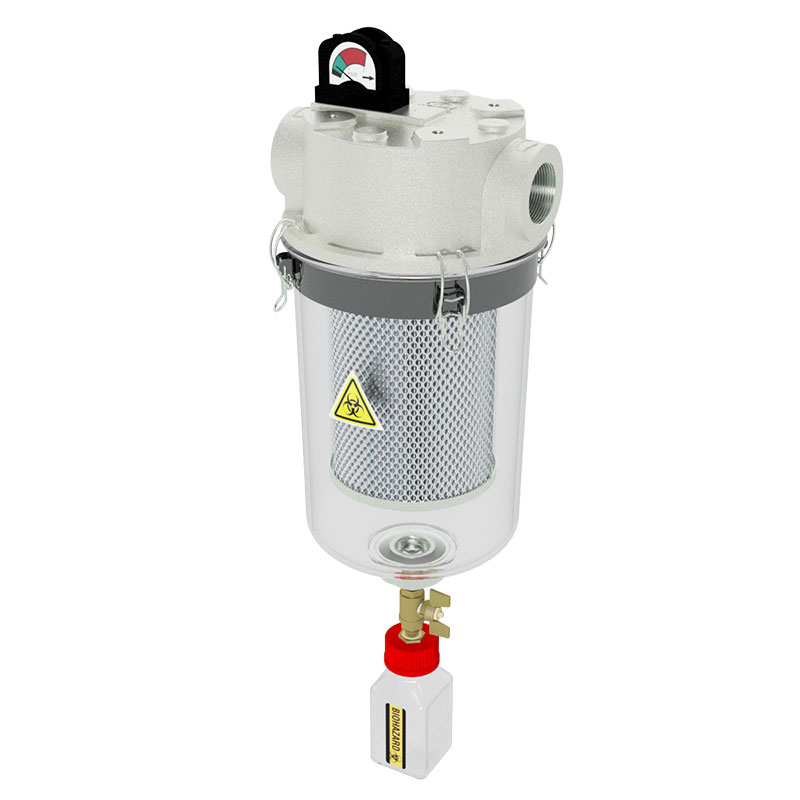

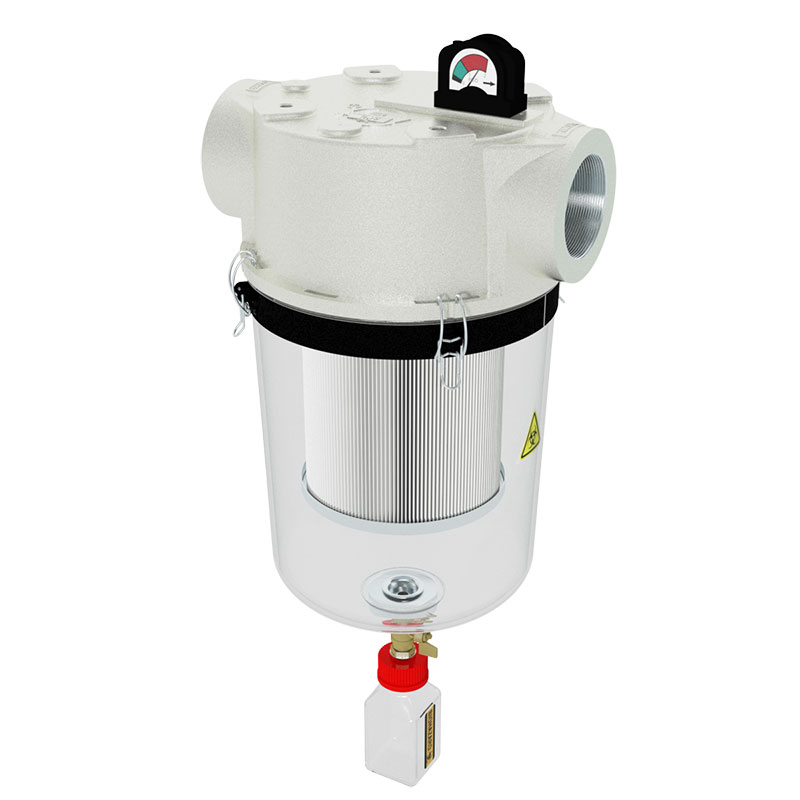

Solberg HV Series, 1" to 4", Medical Vacuum Filters

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $1,015.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Meets NFPA 99 requirements for vacuum filtration
  • Operating pressure range: atmospheric to full vacuum
  • ULPA - UL media - 99.995% @ 0.1 micron; Low air to media ratio minimized pressure loss for optimal pump performance; High dirt holding capacity
  • Temp (continuous): min -15°F (–26°C) max 220°F (104°C)
  • Corrosive resistant aluminum cast head
  • Brass valve and fittings for contaminated liquid release
  • Glass drain flask for easy removal and sterilization
  • "Easy Read" pressure drop indicator gauge
  • Bucket made from shatter resistant polycarbonate
  • Biohazard label
  • Designed specifically for use in laboratory and hospital work area environments
  • Meets ISO 29463-1 requirements for ISO 45H class filtration

HV Series: Medical Vacuum Filters

Solberg’s HV Series Medical vacuum filters offer superior filtration with exceptional pressure drop performance. With its transparent design, optimized element surface area, and compact design, our HV Bacterial Filter Series provides an innovative, high quality, and long-lasting solution that satisfies the strict requirements of the medical industry.

Solberg’s HV Series:

  • Meets demanding filtration requirements and complies with the latest European and US medical vacuum standards, including:
    • ISO 7396-1:2016 Medical gas pipeline systems — Part 1 Pipeline systems for compressed medical gases and vacuum
    • NFPA 99:2018 Health Care Facilities CodeNFPA 99 requirements for vacuum filtration
    • EN1822-1 filter class H14 requirements
  • Prevents microbial contamination of vacuum pump oil and the surrounding environment
  • Allows for real-time performance monitoring and maintenance checks of the filter with its clear canister design
  • Improves safety and awareness with highly-visible Biohazard labeling
  • Reduces energy consumption over time with its low-pressure drop design
  • Includes isolation valve  and reusable glass flask for safe disposal and sterilization

Third-party verification ensures Solberg’s HEPA and ULPA vacuum filters meet ISO 45H classification as defined in ISO 29463-1. Our HV Series achieves a greater than 99.995% total retention rate, offering an extreme level of protection in the medical, hospital, dental, and laboratory settings.

Part Number Price Available
HV-UL234/2G-300C
Show Configuration
$1,760.00 4 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 days". Click here to select options
