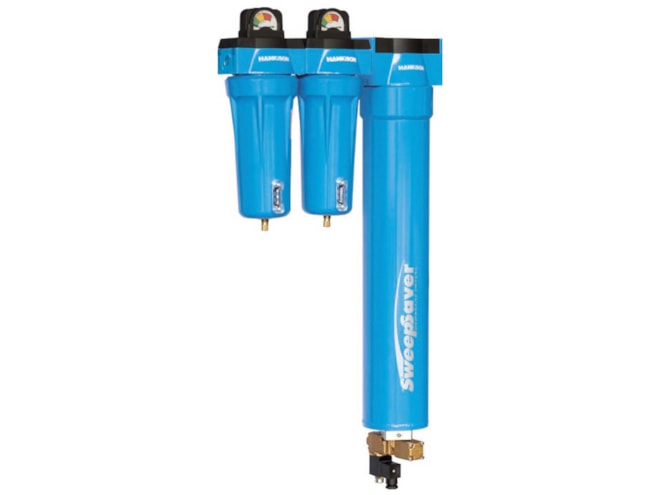

Hankison SweepSaver Series Membrane Air Dryer

1.4 to 121 SCFM air flow rates, digital purge control, dries compressed air to -40°F.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $2,825.40
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 1.4 to 121 SCFM
  • 200 PSIG max operating pressure
  • 150°F max inlet temperature
  • SweepSaver digital purge control
  • 120/1/60 voltage
  • Aluminum housing material
  • ISO 8573-1 class 1.2.1
  • Unit must be installed with pre-filter package

The Hankison SweepSaver Series Membrane Air Dryer is equipped with digital purge control (DPC) and an integrated normally open, two-way valve that responds to your demand signal to regulate sweep air. By keeping the bore of the membrane fibers pressurized with a zero demand signal, DPC minimizes sweep air waste and saves you energy. Simply activate the process air demand signal to initiate the flow of sweep air.

Available with one of two pre-filter packages:

  • Single pre-filter: Contains one Hankison HF Series grade 5 oil removal filter.
  • Dual pre-filter: Contains one Hankison HF series grade 7 air line filter and one Hankison grade 3 oil removal filter.
