Hankison HCD Series Heat of Compression Desiccant Air Dryer

350 to 3700 SCFM air dryer, 150 PSIG max operating pressure, ISO 8573.1: 2010 air quality 2 to 4.

Michael Rotondo headshot

Michael Rotondo

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 350 to 3700 SCFM flow rates
  • 120°F max inlet air temperature
  • 150 PSIG max operating pressure
  • Valves:
    • 350 to 450 SCFM models: angle seat valves
    • 600 to 3700 SCFM models: non-lubricated butterfly valves
  • ISO 8573.1: 2010 Air Quality 2 to 4 (-40 to 37°F)
  • Skid mounted design

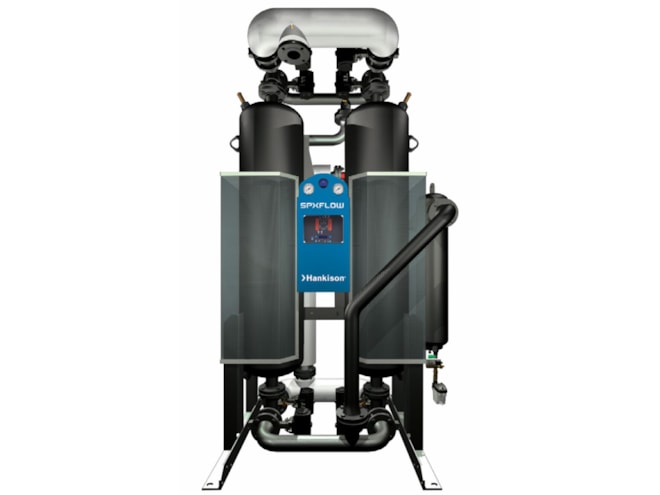

The Hankison HCD Series Heat of Compression Desiccant Air Dryer is an energy-efficient solution that removes moisture from compressed air and delivers high-quality air. The dryer uses thermal energy generated during the air compression process to regenerate the off-line desiccant bed, which reduces operating costs and turns "waste heat" into energy savings. It is ideal for oil-free air compressors.

The HCD Series controller features a diagnostic system that provides real-time operating status, fault conditions, and service due messages. The controller is equipped with an RS232 communications port and Modbus registers for remote monitoring.
