BEKO Technologies BEKOKAT Catalytic Conversion System

Complete oil and bacteria removal systems for compressed air, ISO 8573-1 Class 1 or better.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $10,263.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • ≤.003 mg/m3 attainable residual oil at outlet
  • 41°F / 131°F min/max inlet air temperature
  • Max operating pressures:
    • 35 to 425 SCFM: 232 PSIG
    • 10 SCFM and 705 SCFM: 160 PSIG
  • Optional 1 μm pre-filter and bypass valve available
  • ISO 8573-1, Class 1 certified

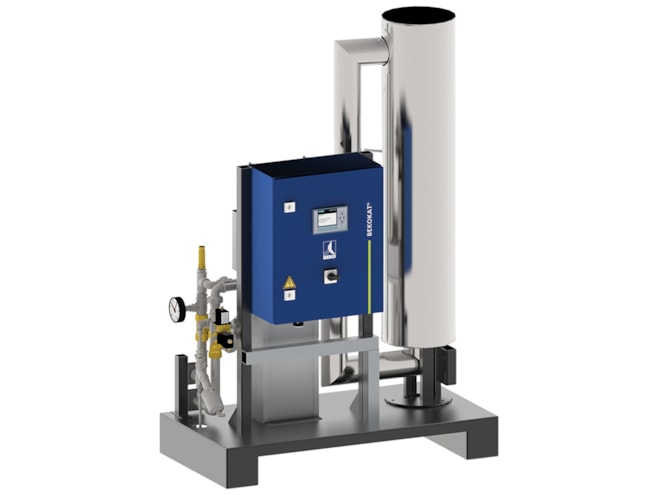

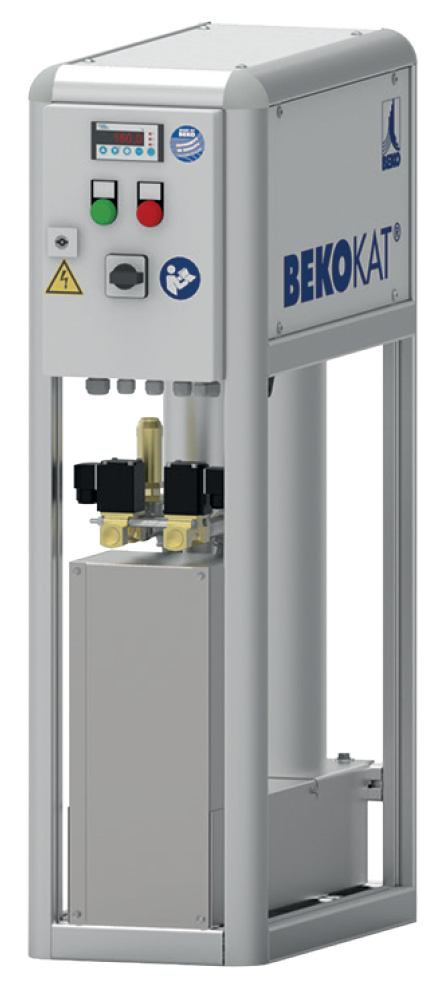

The BEKO Technologies BEKOKAT Catalytic Conversion System converts hydrocarbons into carbon dioxide and water by total oxidation on the catalyst. As a result, the system consistently produces oil-free compressed air with a residual oil content of only 0.003 mg/m³, which exceeds the residual oil content of 0.01 mg/m³ specified in Class 1. This level of purity is required in demanding production processes such as the food, pharmaceutical, automotive, and electronics industries.

The BEKOKAT is typically installed as a stand-alone solution behind the compressors or on the consumption point installed.
