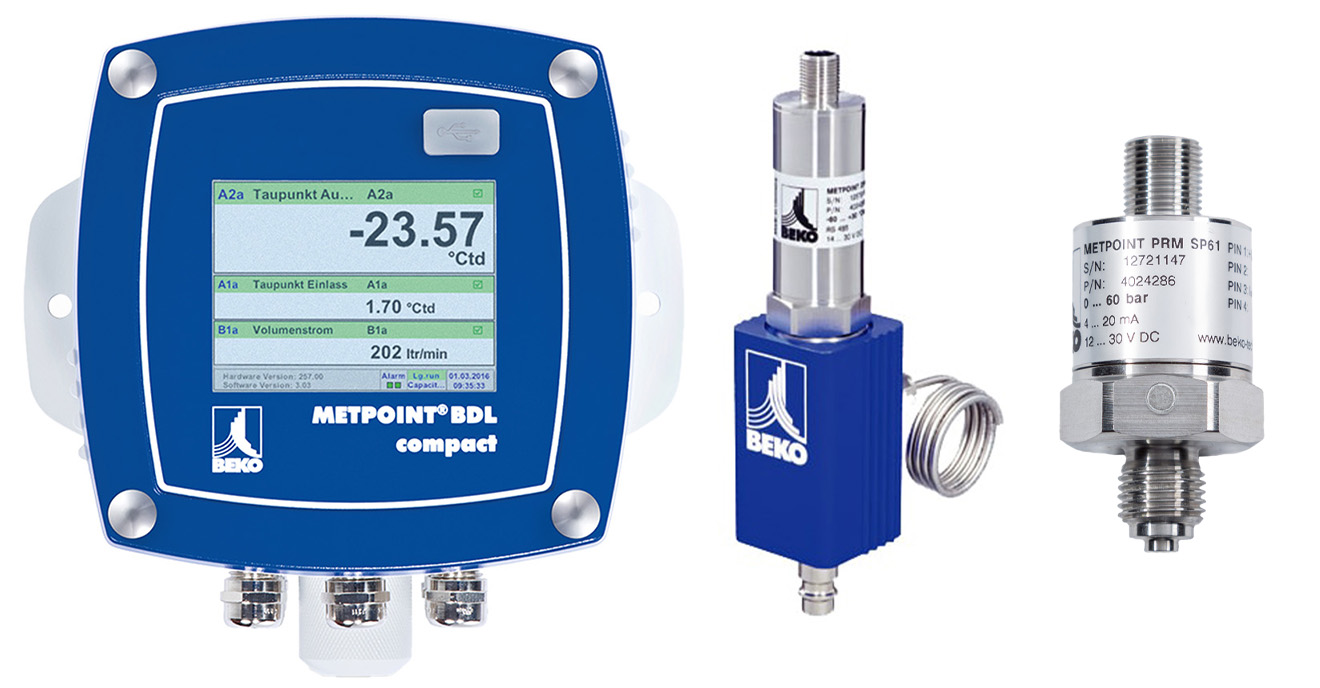

BEKO Technologies METPOINT BDL Multi-Function Monitoring System

Pre-configured monitoring kits for dew point, flow rate, pressure, and oil vapor measurement.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $4,599.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • BDL Compact Monitor:
    • Expandable and future-proof via expansion modules
    • Full data log capabilities
  • BDL XL4 Monitor:
    • Full data log capabilities
    • Sensor ports work with both analog and digital sensors
    • Network ready via Ethernet connection
  • SD Series dew point sensor:
    • -76 to 86°F td
    • -22 to 158°F measured gas temp.
    • 0 to 100% rH
  • SF Series flow sensor:
    • maximum speed flow sensor
    • adjustable probe for up to a 10” pipe
  • SP Series pressure sensor
    • Relative pressure in gases or liquids
    • 0 to 232 PSIG measurement range
  • OCV Compact:
    • ≤.01 to 2.50 mg/m3 residual oil vapor content
    • 4-20 mA analog, RS-485, MODBUS RTU outputs
  • 30ft connection cables included in all kits
  • BDL XL kits include BDL connect basic software (Single user)

Custom kit configurations are available. Please contact us for more information.


The METPOINT BDL Multi-Function Monitoring System from BEKO Technologies comes in two versions - the BDL Compact or the BDL XL, depending on your specific requirements. The system is designed for monitoring critical process parameters for compressed air and gas applications. Its electronic recording system measures input signals and evaluates the necessary information for the specific application. The data is displayed and saved on the device and can be archived for long-term analysis. The system also allows for alarms to be forwarded to higher-level systems. With its process-oriented assessment capabilities, the screen recorder enables swift on-site intervention, if required.

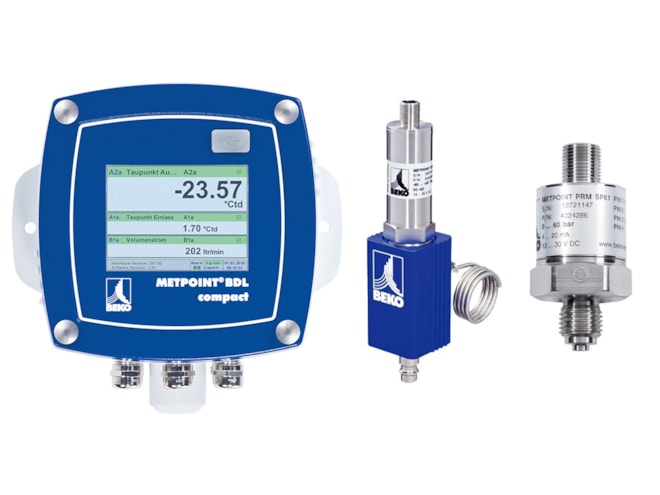

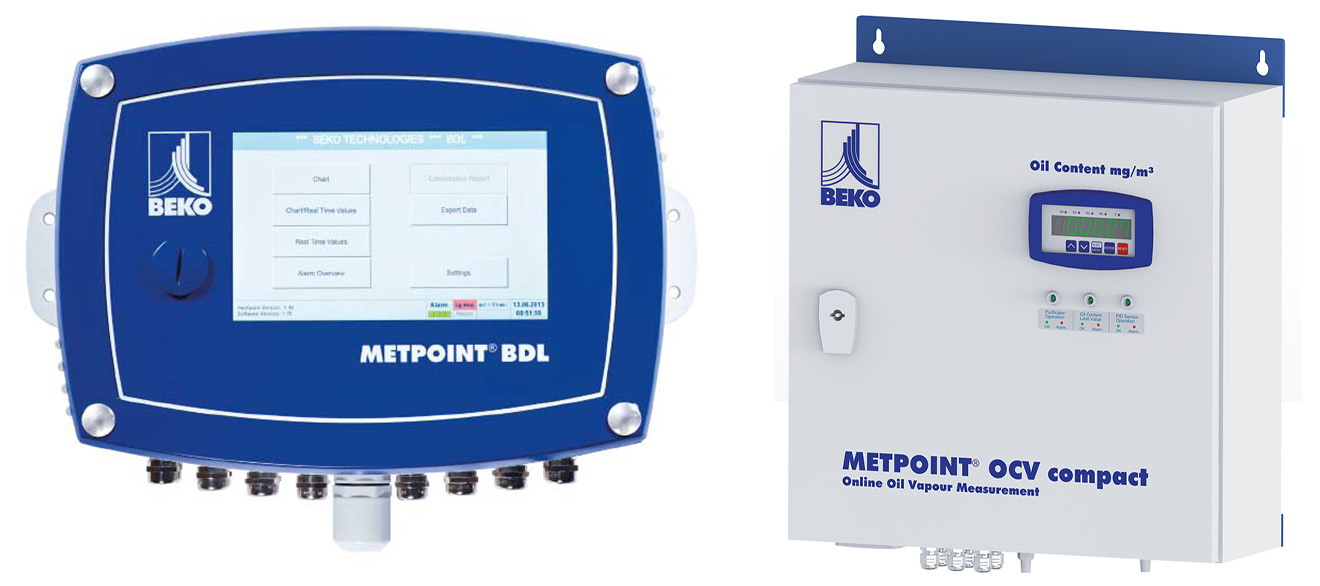

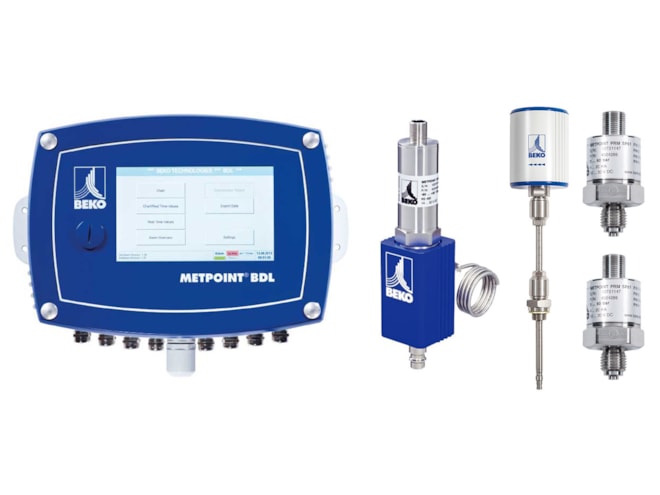

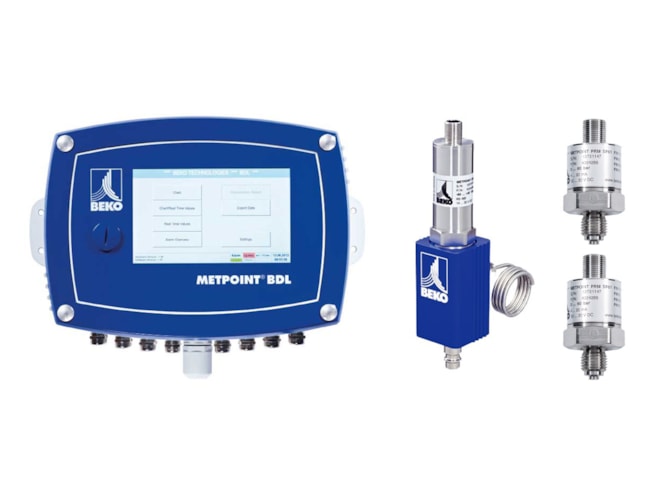

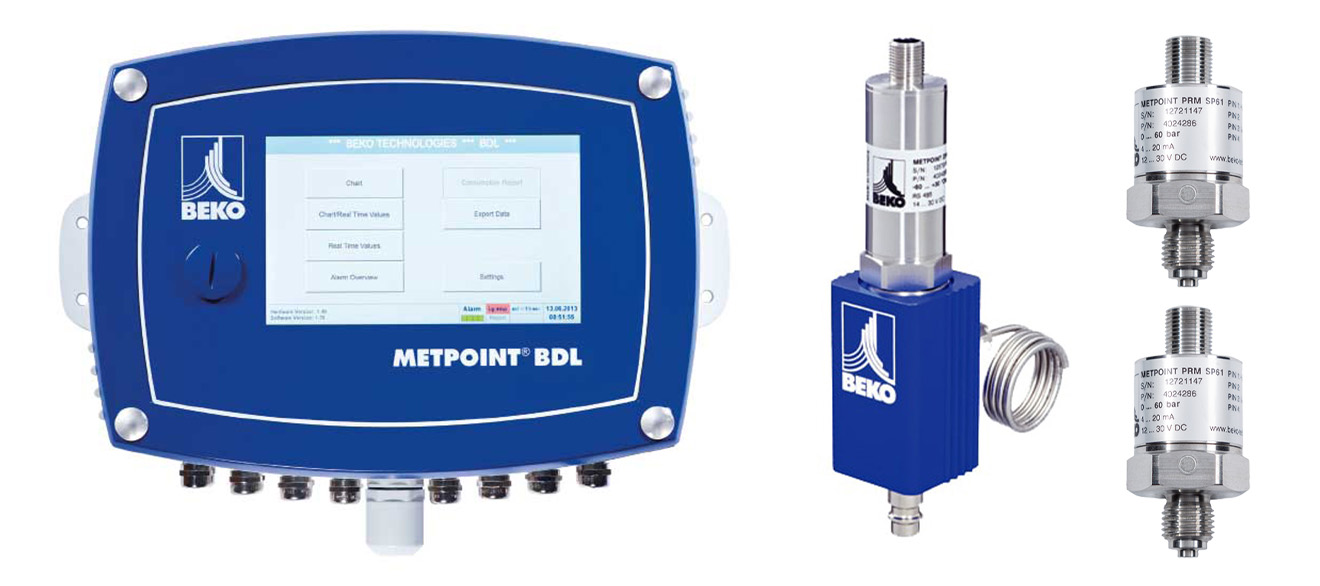

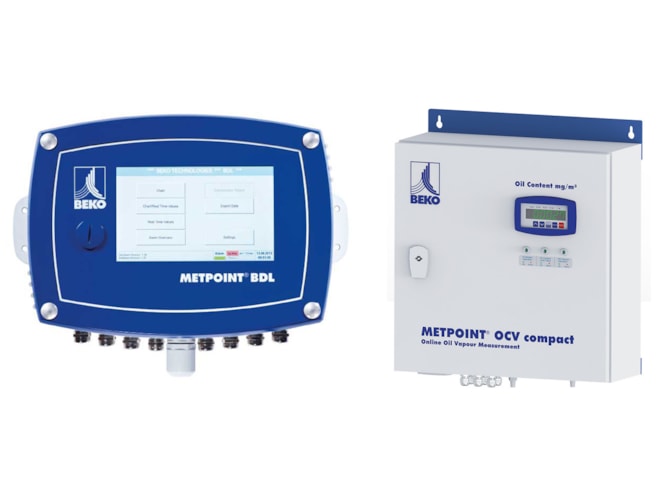

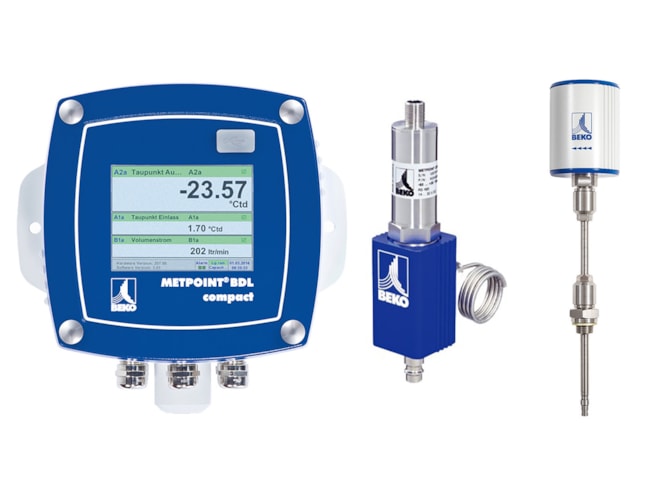

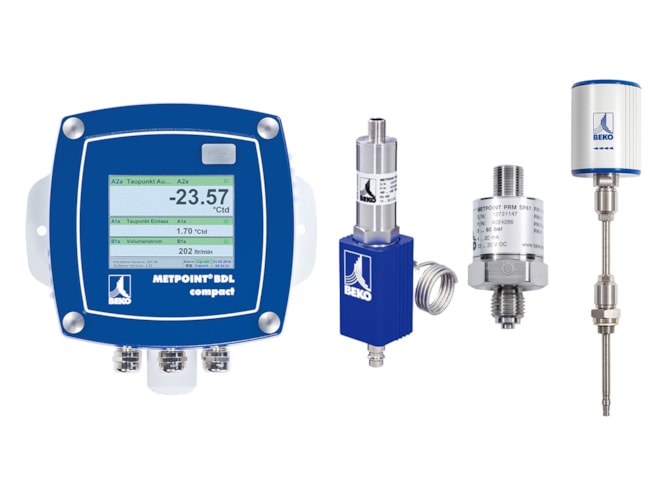

The METPOINT BDL Multi-Function Monitoring System can be configured to monitor and measure pressure, dew point, flow, or oil vapor when paired up with the appropriate sensors. The SD Series dew point sensor accurately measures the degree of humidity or the pressure dew point at critical flow points in your compressed air system. The SP Series pressure sensor measures the relative pressure in gaseous as well as liquid media and converts this measured value into linear output signals. The SF Series flow sensor provides accurate monitoring of compressed air consumption and maps volume flow, consumption, and flow rate. The OCV Compact monitoring system continuously controls the compressed air accurately and according to applicable standards for the residual oil vapor concentration and supports you in retaining the compressed air quality.
