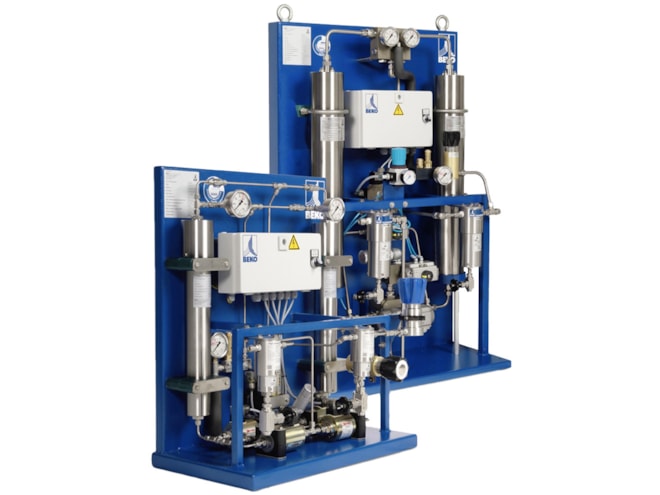

BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer

High pressure heatless dryer with full stainless steel components and PLC controller.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 1450 to 5000 PSIG pressure ratings
  • 35 to 480 SCFM flow rates
  • -40°F standard pressure dew point
    • -100°F optional outlet pressure dew point available
  • Vessels and all components are stainless steel
  • Standard electrical power supply: 85 - 265 VAC; 24 Vdc; 50-60 Hz
  • Included pre-filtration grade SX: .01 μm
    • FX 1 μm optional pre-filtration grade available
  • Included post-filtration grade FX: 1 μm
  • Min. / max. air inlet temperature: 41°F / 131°F
  • Min. / max. ambient temperature: 41°F / 122°F

The BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer comes with a standard compressor synchronization control system. The intelligent control system automatically saves the current status of the process program and resumes operation from the point of interruption in case of a restart. This helps prevent an overload of adsorption desiccant. This solution offers operational safety and energy-saving coupling with compressor operation. The adsorption vessels are made of profiled stainless steel and feature a spacious opening that comes with a screw lid for easy maintenance. This also enables thorough inspections of the inside of the vessel.
