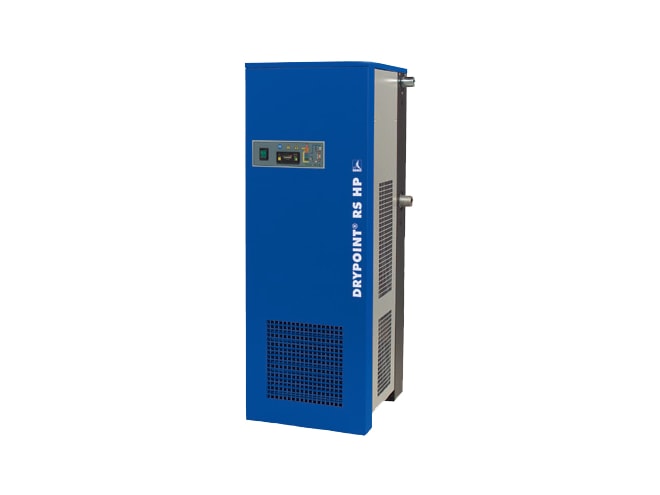

BEKO Technologies RS HP 450, 450 SCFM, High Pressure Refrigerated Air Dryer

Name: BEKO Technologies RS HP 450, 450 SCFM, High Pressure Refrigerated Air Dryer
Price: 13202.0 USD
Availability: BackOrder

1 1/2" NPT, 230/1/60, 1.93 kW, BEKOMAT drain. View other configurations.

$13,202.00

Request Quick Quote

Get Business Financing!
Payments as low as $462/mo

View Company Reviews

Part Numbers

4050513
RS HP 450

Highlights...

Features

450 SCFM capacity
Connection: 1 1/2" NPT
Voltage: 115/1/60
Pressure rating: 725 PSIG
Drain: BEKOMAT drain
1.93 kW power consumption
1 micron required pre-filtration
.01 micron recommended post-filtration
150°F maximum inlet air temperature
34 to 120°F ambient temperature range
Class 4-5 outlet PDP in accordance with ISO 8573-1:2010

View Other Configurations

The BEKO Technologies RS HP 450 High Pressure Refrigerated Air Dryer applies an all aluminum profile for minimal pressure drop, and self-cleans using gravity. The hot gas bypass valve is specifically designed for refrigerant drying, stabilizing the dew point.

Saturated, warm compressed air is pre-cooled in the air-to-air heat exchanger. The compressed air is then cooled in the air-to-refrigerant heat exchanger to the required pressure dew point. Re-entrainment of separated water droplets is prevented by the large condensate collection chamber and reduced velocity. The timer drain then discharges the accumulated condensate from the dryer, and the cold and dried compressed air leaves the dryer via an air-to-air heat exchanger, reducing the relative humidity and recovering the cooling capacity by up to 60%.

The RS HP is specifically designed for high pressure applications, and includes a timer drain for lower capacity models, or a BEKOMAT drain for high capacity models.
