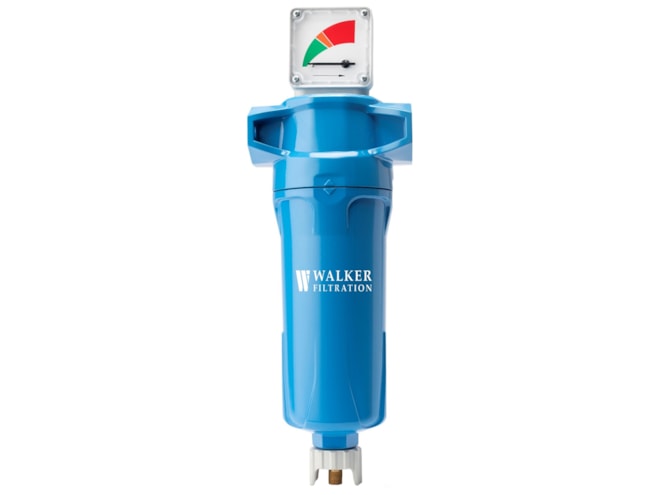

Walker Filtration Alpha Series Coalescing Filter

0.01 to 5 micron coalescing filter with open float automatic drain, rated up to 232 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $187.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 6 to 1500 SCFM capacities available
  • Connection sizes from 1/8” to 3” NPT
  • Differential pressure indicators:
    • Pop-up indicators on 6 to 50 SCFM
    • Gauge indicators on 75 to 1500 SCFM
  • Automatic drain
  • 4 element grades available:
    • X5: 5 micron
    • X1: 1 micron
    • XA: 0.01 micron
    • AC: 0.01 micron activated carbon
  • ISO 12500-1: 2007

The Walker Filtration Alpha Series coalescing filter features newly designed housing and high-performance elements, making it highly energy-efficient. With flow optimization as the primary focus, the Alpha Series features an advanced filter head design that, when paired with the filter element, significantly enhances the air flow, increases energy efficiency, and improves the overall performance of your compressed air system.

The Alpha elements come in four filtration grades (X5 – 5 micron, X1 – 1 micron, XA – 0.01 micron, and AC – Activated Carbon) and deliver substantial energy savings. The XA and X1 grades ensure excellent performance by achieving a saturated differential pressure of <1.8 PSI, providing lower lifetime costs and the highest air quality. The Alpha Series undergoes rigorous testing and validation to ISO 12500-1: 2007, guaranteeing top-notch air quality.

Walker Filtration Alpha Series Filter Element
Walker Filtration Alpha Series Filter Element

Replacement filter element for the Walker Filtration Alpha Series Coalescing filters.

Some Models in Stock
Starting at $68.00
Walker Filtration Alpha Series Connecting Kit
Walker Filtration Alpha Series Connecting Kit

Connects 2, 3, or 4 Alpha Series filter housings together.

Some Models in Stock
Starting at $28.00
Walker Filtration Alpha Series O-Ring Sealing Kit
Walker Filtration Alpha Series O-Ring Sealing Kit

Replacement O-Ring kits for the Walker Filtration Alpha Series Filters.

Starting at $19.00
Walker Filtration Alpha Series Wall Mounting Bracket
Walker Filtration Alpha Series Wall Mounting Bracket

Wall mounting brackets for the Walker Filtration Alpha Series Filters.

Starting at $40.00
Walker Filtration Alpha Series Drain Flask
Walker Filtration Alpha Series Drain Flask

100ml or 250ml polymer coated glass flask for the Walker Filtration Alpha Series Filters.

Starting at $154.00
Walker Filtration Alpha Series Automatic Drain Valve
Walker Filtration Alpha Series Automatic Drain Valve

Automatic float drain, normally open or normally closed operation.

Some Models in Stock
Starting at $67.00
Walker Filtration Alpha Series Manual Drain Valve
Walker Filtration Alpha Series Manual Drain Valve

1/4" or 1/2" manual drain valve for the Walker Filtration Alpha Series Filters.

Starting at $48.00
