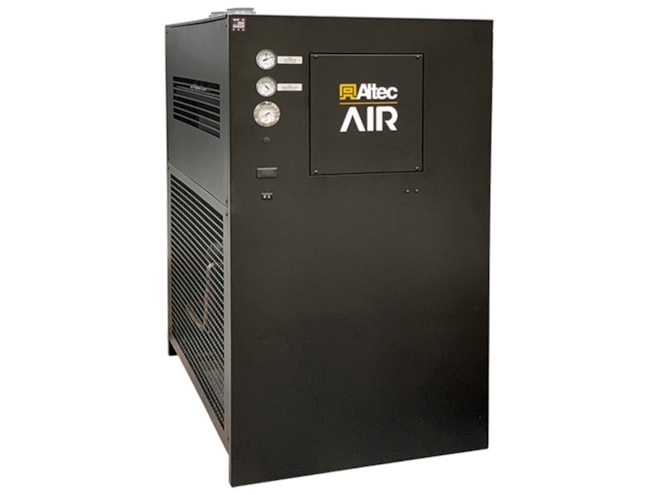

Altec AIR DX Series Digital Scroll Refrigerated Air Dryer

Matches power consumption in direct proportion to the current heat load of the air dryer, up to 2000 CFM inlet flow rate.

Features

  • 400 to 2000 SCFM capacity
  • 2" to 4" NPT inlet/outlet ports
  • 3/8" to 1/2" drain ports
  • 120°F max inlet temperature
  • 232 PSIG max pressure
  • R404a refrigerant
  • ISO Class 4 - 5

The Altec AIR DX Series digital scroll refrigerated air dryer is designed with the ability to match the power consumption in direct proportion to the current heat load of the air dryer. The digital scroll design combined with capacity modulation control means power consumption is reduced (up to 90%). The DX series delivers consistent and reliable dry air (ISO class 4 - 5).

Altec AIR Refrigerated Air Dryer Filter Kit
Altec AIR Refrigerated Air Dryer Filter Kit

Complete filter kits designed for use with the Altec AIR RAD Series, UA Series, and DX Series Refrigerated Air Dryers.

Starting at $270.30
Altec AIR UA and DX Series Magnetic Condenser Filter
Altec AIR UA and DX Series Magnetic Condenser Filter

Optional magnetic condenser filter for the Altec AIR UA and DX Series Refrigerated Air Dryer.

Starting at $104.55
Altec AIR Programmable Condensate Drain
Altec AIR Programmable Condensate Drain

Optional programmable condensate drain for Altec AIR Air Dryers.

Starting at $84.15
