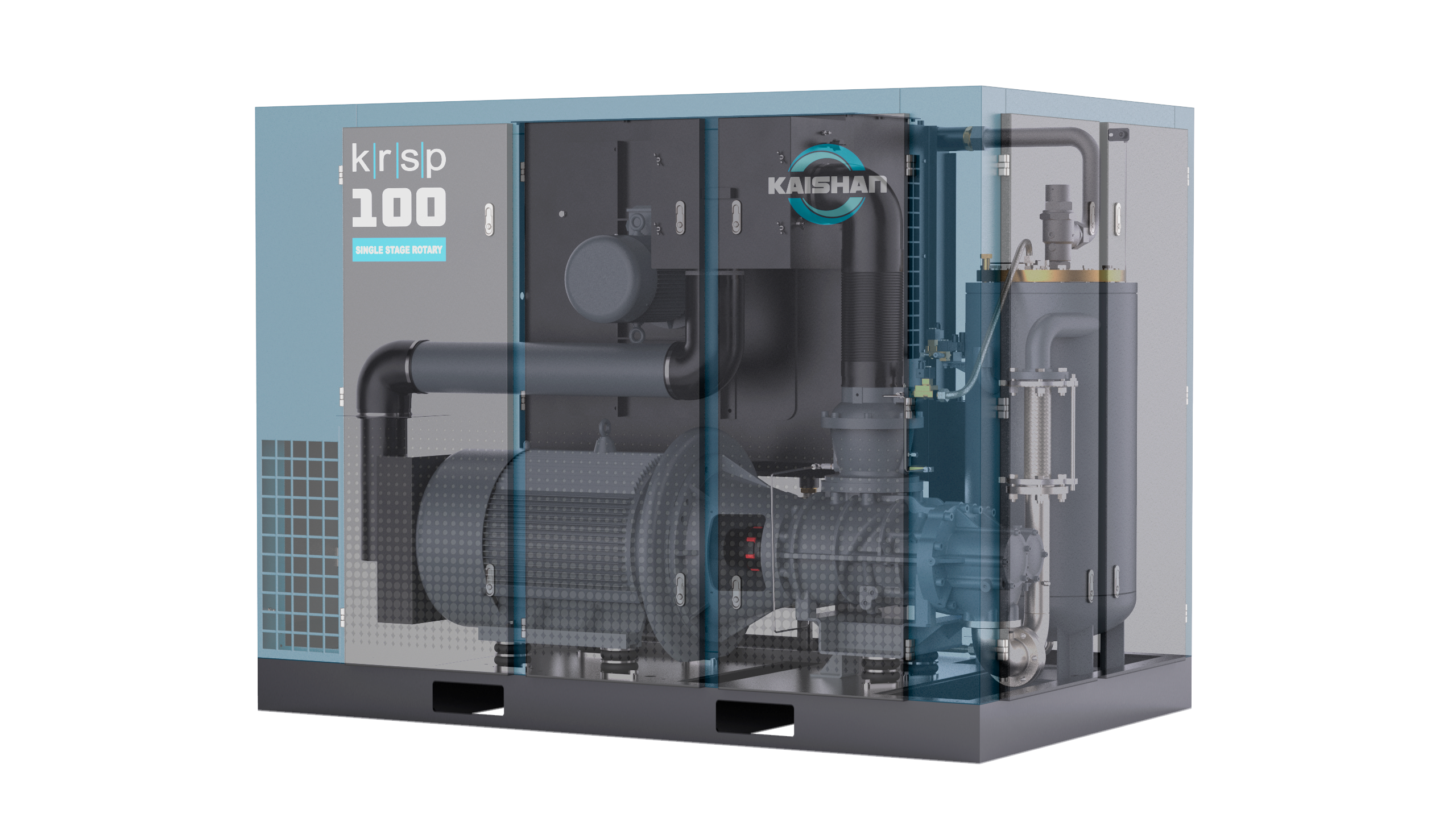

Kaishan USA KRSP-100W2F4S8U , 100 HP Rotary Screw Air Compressor

Base Mount, 100 HP, 494 CFM, 125 PSI, 460/3/60. View other configurations.

Kaishan KRSP Rotary Screw Air Compressor
Kaishan KRSP Rotary Screw Air Compressor

Call for pricing

Request Quick Quote

View Company Reviews

Part Number

KRSP-100W2F4S8U [125psi]

Highlights...

KRSP-100W2F4S8U [125psi]
By Kaishan USA
FREE Shipping on orders of $1,000 or more
Factory Warranty and Support Available
Local Service Available on All Brands

Features

100 HP
Capacity:
- Fixed speed:494 CFM at 125 PSI
Voltage:
- 460/3/60
TEFC (IP 54) standard motors with Class F insulation
SKY Series airend:
- Direct drive (1:1 ratio)
- Slow speed rotors
- Quadruple SKF bearings
- 5 / 6 rotor profile
- Direct flow inlet valve
Single pass oil and aftercooler
Ultraweb air intake filter
Centrifugal cooling fans
Digital control panel

View Other Configurations

The Kaishan KRSP-100W2F4S8U , 100 HP rotary screw air compressor is a single stage compressor that features direct drive, providing a highly reliable flow of compressed air and offering maximum air output while also reducing energy usage. Available in both fixed speed or variable speed, air or water cooled configurations, the KRSP can meet your application needs.

The SKY Series airend with an asymmetric 5 / 6 rotor profile and KAPP Grinder rotor allows for tighter clearances and improved performance. The slow speed rotors maximize performance and increase reliability and the steady system pressure lowers system stress and overall air demand.

The optional variable speed drive (VSD) combines a robust power platform with a state-of-the-art control scheme. The VSD provides a soft start and the ability to operate efficiently through the capacity range by matching the flow to the demand, while also maintaining a high level of pressure control.

The KRSP series also features three-stage tangential oil separation to prevent direct oil impingement and lower dust contact. This combined with the Ultraweb air filter that removes particles (down to 5 microns) reduces the risk of contamination and reduces overall wear on the system.
