Overview

Features

  • Normal: 5 LPM Continuous
  • Maximum: 10 LPM Emergency
  • 0 - 75 PSIG (0 - 5.1 bar)
  • -100°F (-73°C) Atmospheric Dew Point
  • 1/3 HP, Oil-less, Rocker Piston
  • Outlet Connection; 1/4" NPT x 1/4" Press-to-Lock Tube Fitting
  • 18" D x 24" W x 14" H
  • 115 VAC, 1 Phase, 50/60 Hz
  • 230 VAC, 1 Phase 50/60 Hz
  • 72 lbs

Description

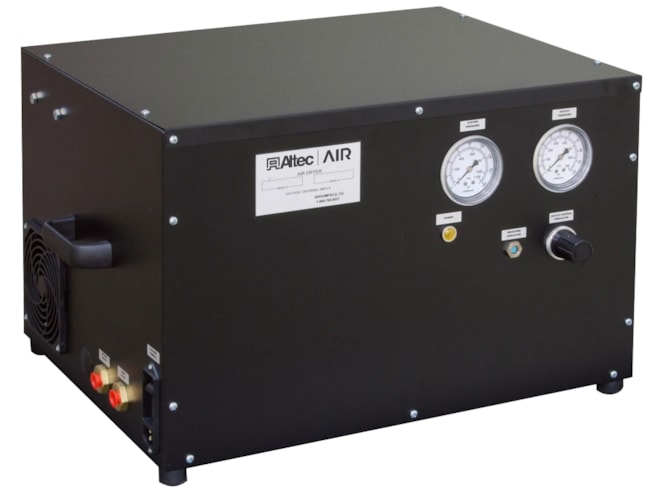

Altec AIR’s Clean Dry Air Package is a complete, enclosed, compact unit, consisting of an Oil-less Air Compressor, Regenerative Desiccant Air Dryer, Regulator, Coalescing and Particulate Filters. This packages is great for applications requiring low volumes of clean, dry compressed air at pressures up to 75 PSIG.

  • Reliable oil-less Compressor to assure oil-free air at all times.
  • Equipped with Rocking Piston Pump technology for long interval times between maintenance and easy service.
  • Proven Regenerative Desiccant Heatless Air Dryer uses dual tower technology for continuous dry air supply.

In Stock

Manufacturer Stock

Part Number Price Available
CDA10 [115/1]
$5,670.00 5 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 weeks". Click here to select options
