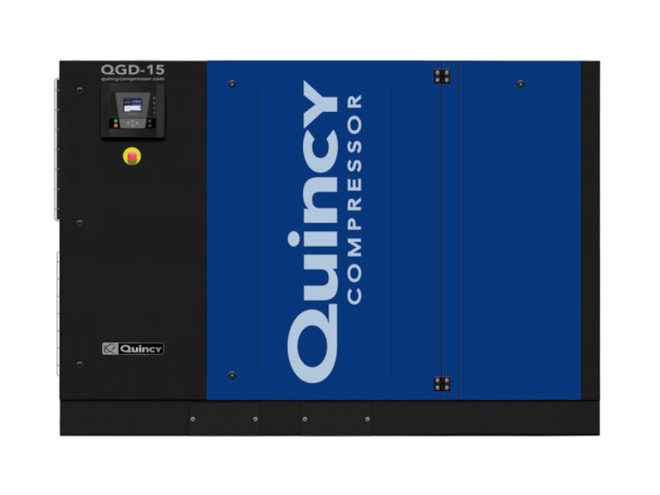

Quincy Compressor QGD-15-BM, 15 HP Rotary Screw Air Compressor

Base mounted, 70.1 ACFM at 125 PSI, 208-230/460/3/60. View other configurations.

Features

  • 15 HP
  • 70.1 ACFM capacity
  • 125 psig pressure rating
  • Voltage
    • 208-230-460/3/60 V (tri-voltage)
  • Three phase
  • NEMA Class 1 TEFC motor
  • NEMA 4 electrical enclosure
  • True Blue warranty
View Other Configurations
The Quincy QGD-15-BM series is a high performance rotary screw compressor package that can be used in a wide range of applications. The Quincy QGD series rotary screw air compressors come in 15 to 30 HP for small and medium-sized applications requiring a machine with a smaller footprint and 40 to 60 HP for medium-sized applications that demand a steady flow of compressed air. The QGD series compressors come standard with NEMA premium TEFC drive and fan motor, package air pre-filtration, phase monitor, Wye-Delta starter, and high-efficiency airend for optimum performance.

The Airlogic2 microprocessor controller delivers information for easy monitoring and intuitive control with an intelligent unload cycle to optimize energy use for maximum efficiency. The controller features automatic restart after power failure, dual pressure set point, the ability to program up to four different week-schedules for a 10-week period, graphic service plan indication, and the ability to network up to 6 units. Online visualization capability is standard and allow monitoring of QGD series compressors from anywhere with internet access.

The Quincy Compressor QGD series are designed with serviceability in mind. The compressors have boltless hinged doors in front and back, fast panel access to consumables via a single panel, large roof service access, and spin-on filters for 15 to 30 HP models.
