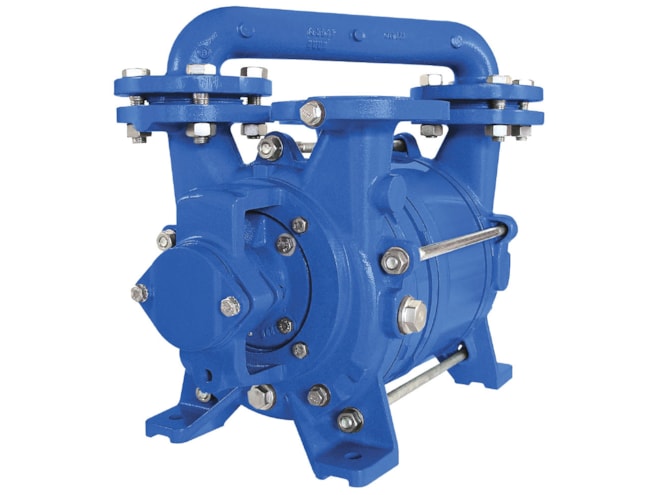

Airtech 3AVH Series Liquid Ring Vacuum Pump

1.5 to 75 HP two stage pump with speeds up to 3500 RPM, 15 to 1000 ACFM nominal capacities, vacuum levels up to 29 inHg.

Features

  • Pump only - no motor included
  • Up to 29 inHg vacuum level
  • 15 to 1000 ACFM nominal capacities
  • Pump speeds from 1170 to 3500 RPM
  • Material options:
    • Cast iron with bronze rotor (1.5 to 20 HP)
    • Cast iron with ductile iron impeller (25 to 75 HP)
    • 316 stainless steel wetted parts with Viton elastomers

The Airtech 3AVH Series liquid ring vacuum pump is a compact and efficient design where continuous and quiet operation and reduced power consumption is required. The two stage, variable discharge port design provides efficient operation from 10 through 1000 ACFM for vacuum levels up to 29 inHg. The design of the impeller with slower spinning curved blades reduces tip speed, extending and improving the life expectancy of the pump.
