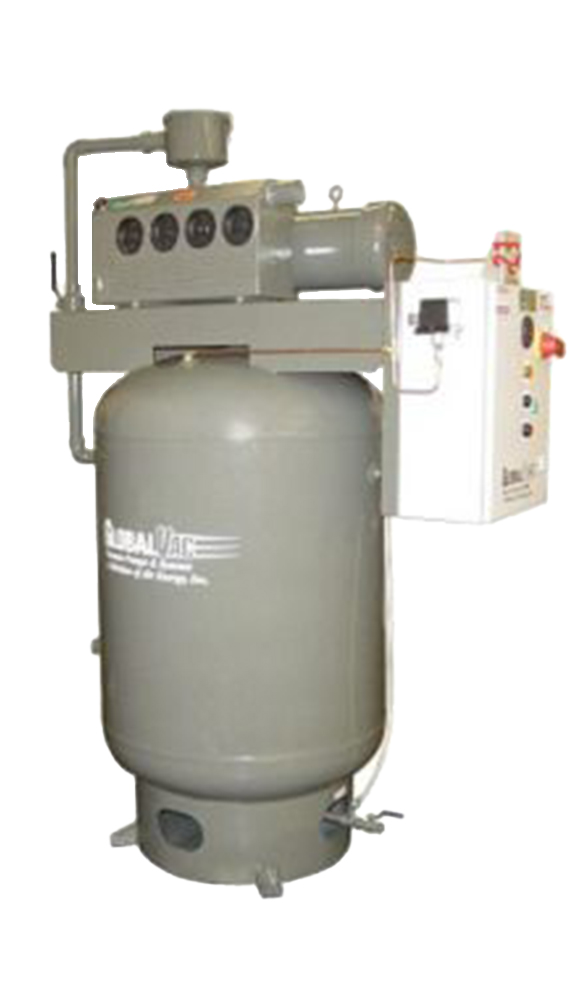

GlobalVac & Air GPRS Series Lubricated Rotary Vane Vacuum System

Lubricated, tank mounted system with a simplex control panel and isolation valve.

Features

  • 1 to 10 HP
  • 10.6 to 212 CFM capacity
  • 30 to 200 gallon tank
  • Line voltage motor starter with overload protection
  • Door mounted disconnect
  • Run light
  • Hour meter
  • Vacuum gauge

The GlobalVac & Air GPRS Series rotary vane vacuum pump system is tank mounted and available with either a horizontal or vertical tank, depending on the HP selected. The GPRS system is built with an isolation valve, check valve, and rotary vane vacuum pump mounted inlet filter assembly with a quick clasp system for easy element changeout. The receiver is equipped with a sight glass and a manual drain valve. The system is operated by a mounted and wired simplex control panel. The 120V control transformer has CB protected primary and secondary circuits.
