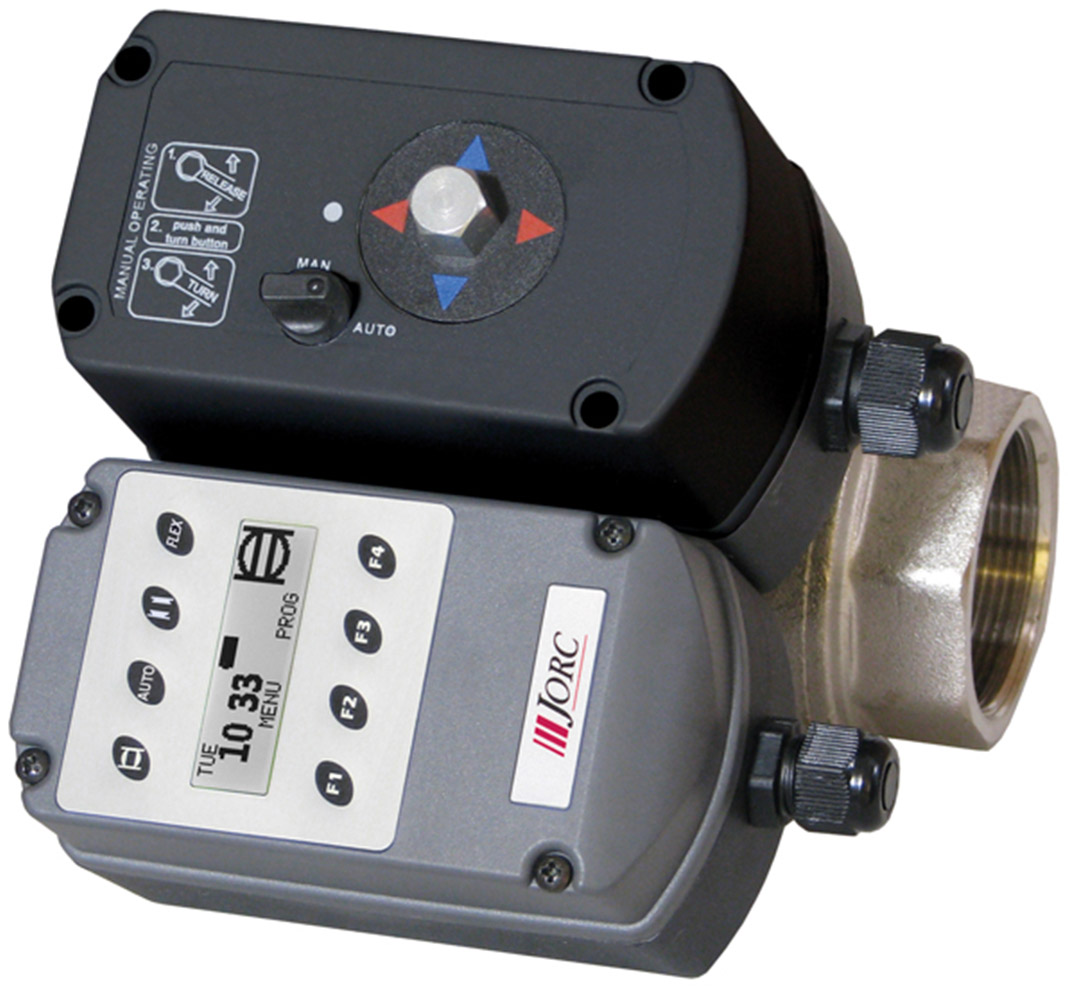

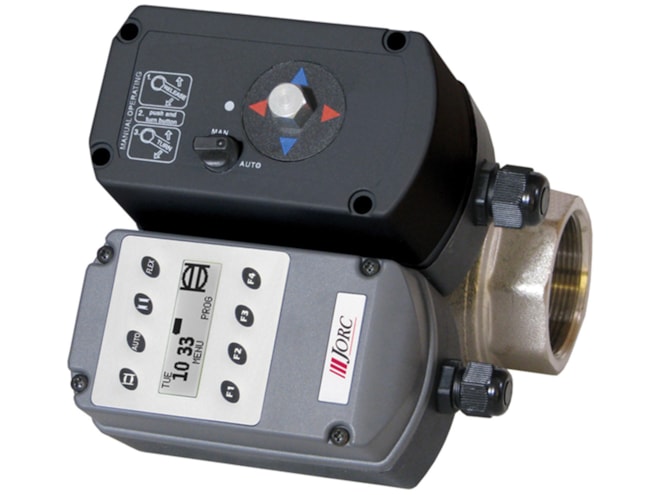

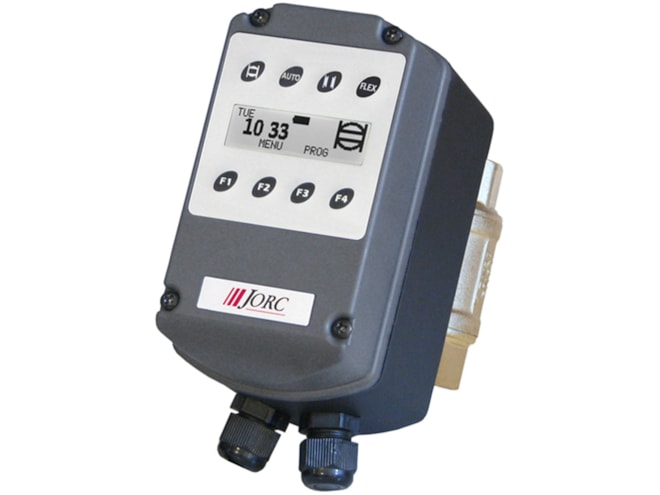

JORC Industrial AIR-SAVER Series Ball Valve
Slow rotating motorized ball valve controlled by a programmable week planner rated up to 230 PSI.
Overview
Features
- 1" or 2" NPT inlet and outlet sizes available
- 30 seconds (90°) valve opening and closing duration
- 230 or 115 VAC voltage options

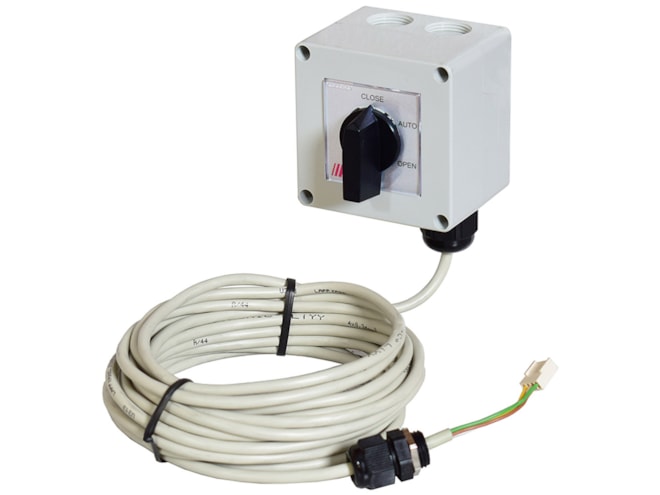

- Optional remote switch available
- Optional energy saver available for 115 VAC models
- Brass valve, nickel plated valve housing material
- CR2032, 3 volt battery
- NEMA13 (IP54) protection
Description
The JORC Industrial AIR-SAVER Series ball v is designed to limit air loss through pipe works connections and leaking float type drains by closing off the air flow and save the generated compressed air in the air receiver. The AIR-SAVER is typically installed on the air outlet of the air receiver but can also be applied in larger factories to close off certain parts of the compressed air system, where during certain parts of the day no compressed air is required.

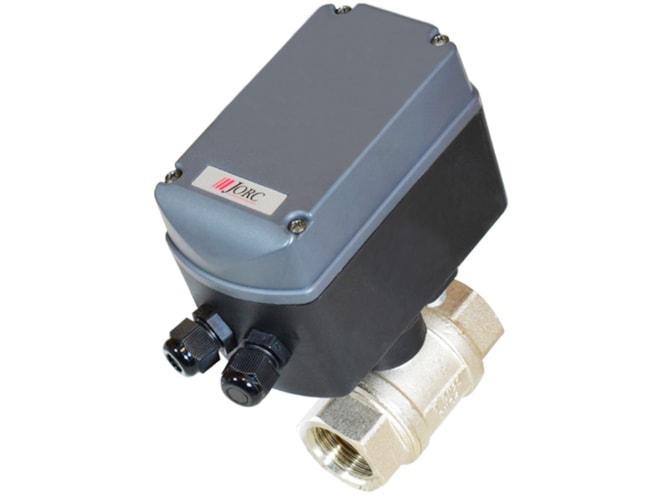

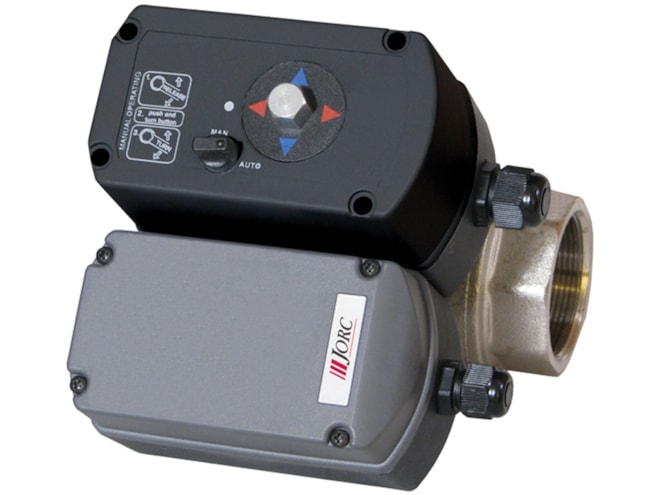

The Energy Saver option allows the valve to be connected to a light switch. By switching on the lights in the production area, the AIR-SAVER will open. The saved compressed air flows into the factory compressed air line and the compressor kicks in to produce the air needed to fill the system. When you switch off the lights and the AIR-SAVER will close accordingly.
