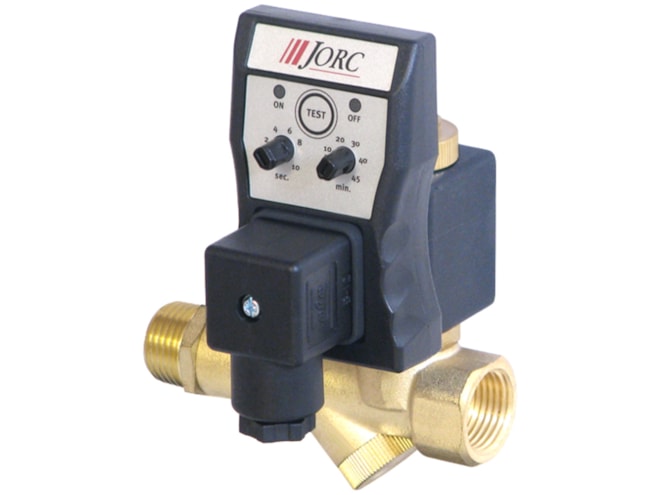

JORC Industrial COMBO Series Drain

Electronic timer controlled drain with a brass valve body and integrated mesh strainer, rated up to 230 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $151.70
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 0 to 230 PSI pressure range
  • Timer cycle range:
    • On: 0.5 to 10 seconds
    • Off: 0.5 to 45 minutes
  • 1/4" and 1/2" NPT inlet size
  • 1/2" NPT outlet size
  • Included test feature
  • Integrated mesh strainer
  • 4mm valve orifice
  • 2/2 way, direct acting valve type
  • FPM valve seals
  • Brass valve body
  • DIN 43650-A power connection
  • NEMA4 (IP65) protection

The JORC Industrial COMBO Series drain combines an adjustable electronic timer controlled drain, ball valve, and a mesh strainer into one compact easy to install package. Designed to be used for any flow range and pressures up to 230 PSI, the COMBO Series is perfect for virtually any compressed air application.

The COMBO Series includes a test button, LED on/off indication, and a full serviceable direct acting valve. It is an affordable, reliable condensate management option without the need to install additional valves and strainers. Can be used on any compressor, receiver, filter or refrigerated dryer.

JORC Industrial Brass Strainer
JORC Industrial Brass Strainer

Ball valve with a stainless steel mesh strainer.

Starting at $44.95

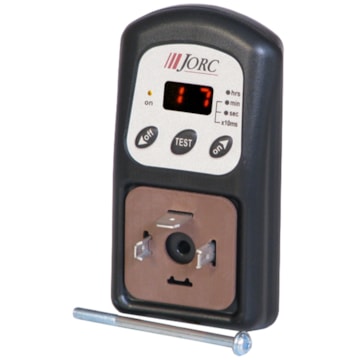

JORC Industrial D-LUX Timer
JORC Industrial D-LUX Timer

Electronic solenoid valve timer upgrade for OPTIMUM and COMBO Series drains.

Starting at $137.00
JORC Industrial JC-Type Coils
JORC Industrial JC-Type Coils

Replacement solenoid valve coils for JORC timers and drains.

Starting at $53.00
JORC Industrial DIN Connector
JORC Industrial DIN Connector

DIN A and B connections, screw and gasket included.

Starting at $8.05
ToolImage
Service & Preventative Maintenance Contracts Available

Free estimates available.

Part Number Price Available
2583
Show Configuration
$167.80 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 days". Click here to select options
