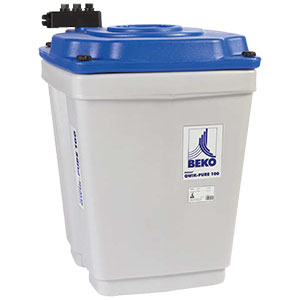

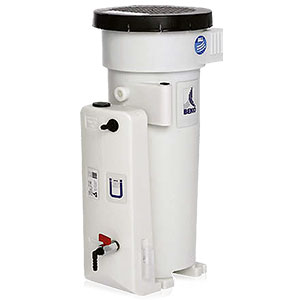

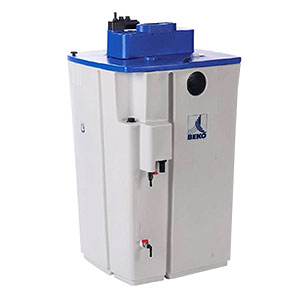

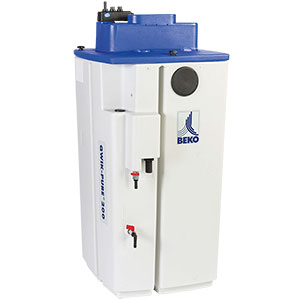

BEKO Technologies QWIK-PURE Oil and Water Separator
Includes direct-to-cartridge filtration.
Overview
Features
- 45 - 7200 CFM range
- 1/2" to 1" condensate feed
- 1.3 to 10.7 gallon cartridge capacity
- 1.1 to 36.24 gallon filling capacity
- 2.6 to 60.34 gallon tank size
- 41 to 140°F ambient temperature range
- 140°F maximum condensate temperature
- 232 PSIG pressure rating
Description
The BEKO Technologies QWIK-PURE Oil and Water Separator works well with all lubricant types and includes a user-removable and replaceable lightweight cartridge with integrated handles. The cartridge can be disposed of normally and is safe for sanitary landfills, due to the oil being securely trapped in the adsorption material and sealed. Multiple units can be used together and can accommodate total flow rates of over 7,000 SCFM with a flow-splitter device.
Oil contaminated condensate flows into the pressure relief chamber, where the pressure is reduced without causing turbulence. Entrained coarse dirt particles are retained in a removable receiver. The condensate then flows through the oleophilic pre-filter, which has a large active filtering space. With flow from inside to outside, it binds to and absorbs the oil in the filter chamber. At the core is the OEKOSORB primary filter cartridge, where residual oils are retained. The remaining water may be directly introduced into the sewer system.
