Overview

Features

  • 4.1 to 288 SCFM capacity
  • 3/8" to 3" NPT connection
  • Full vacuum to 232 PSIG design operating pressure range
  • Particle removal:
    • PP5 grade: 5 micron
    • PP1 grade: 1 micron
  • 1 mg/m3 maximum oil carryover at 68°F
  • Clean pressure drop:
    • PP5 grade: 0.3 PSID
    • PP1 grade: 0.6 PSID
  • 35 to 248°F design operating temperature range
  • 12 month/8,000 hour maximum element life

Description

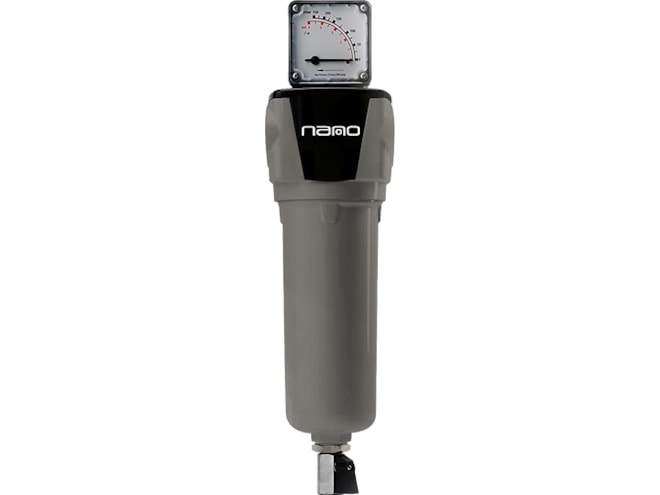

The nano-purification solutions NPP Vacuum Pump Protection Filter applies a modular design to allow close coupling of filters, simplifying installation and maintenance. The housing is manufactured from cast aluminum alloy, providing enhanced strength and featuring an E-Coat™ finish for optimum corrosion protection. The proprietary media technology includes oleophobic borosilicate glass microfiber media. A manual valve condensate drain and vacuum indicator/gauge are included as standard.

Applications

  • Chemical
  • Dental
  • Food and beverage
  • Laboratories
  • Manufacturing
  • Medical
  • Packaging
  • Paint applications
  • Pharmaceutical pneumatic conveying
  • Printing and paper
