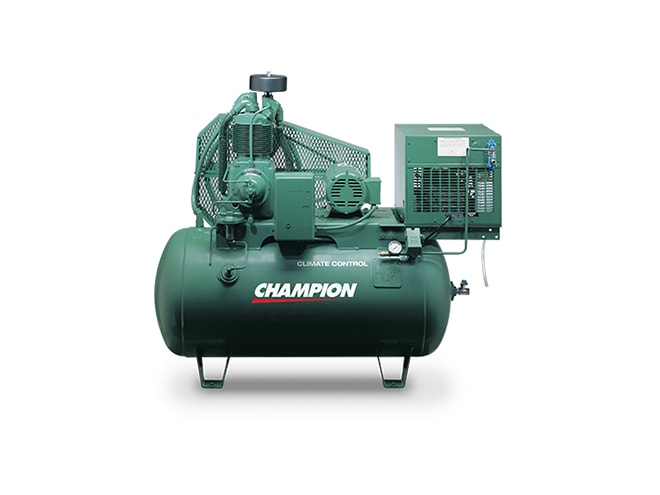

Champion Climate Control Series Piston Air Compressor

Splash lubricated reciprocating air compressor, simplex and duplex configurations, mounted to a horizontal receiver tank.

Champion Climate Control Series Piston Air Compressor - Simplex Configuration
Champion Climate Control Series Piston Air Compressor - Duplex Configuration

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.

Starting Price: $2,674.88

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part No. {{ calcPartNumber }}

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

Features

Horsepower options:
- 0.5 to 1.5 HP (Simplex)
- 1 to 3 HP (Duplex)
Start / stop pressure switch control
ASME coded receiver: 30, 60, or 80 gallon options
Intake filter / silencer (duplex x2)
1800 RPM motors (duplex x2)
Enclosed belt guard (duplex x2)
Loadless starting
Optional mounted refrigerated air dryer and magnetic starter available

The Champion Climate Control Series piston air compressor was developed over years of industrial research and testing. The result is a line of machines that suitable to critical industry demands. Climate Control Series compressors feature low operating RPM for longer component life, lower operating temperatures, greater energy efficiency, inlet filter silencers and side-sealer piston rings (on selected models) for lower oil carry over.

The Climate Control Series is mounted on a 30, 60 or 80 gallon ASME coded receiver tank. Available in either simplex or duplex configurations, is air cooled and splash lubricated.
