Chicago Pneumatic QRS Rotary Screw Air Compressor

3 to 30 hp rotary screw compressors, base or receiver mounted, with or without dryer to have a compact and all-in one system.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Base mount or tank mount (60 or 120gal)
  • 3 to 30 HP
  • 125 to 150psi pressure rating
  • 9.8 to 113.8 CFM capacity
  • 230/1/60 or 208-230/460/3/60 voltage options
  • Optional integrated air dryer available

Tech Specs

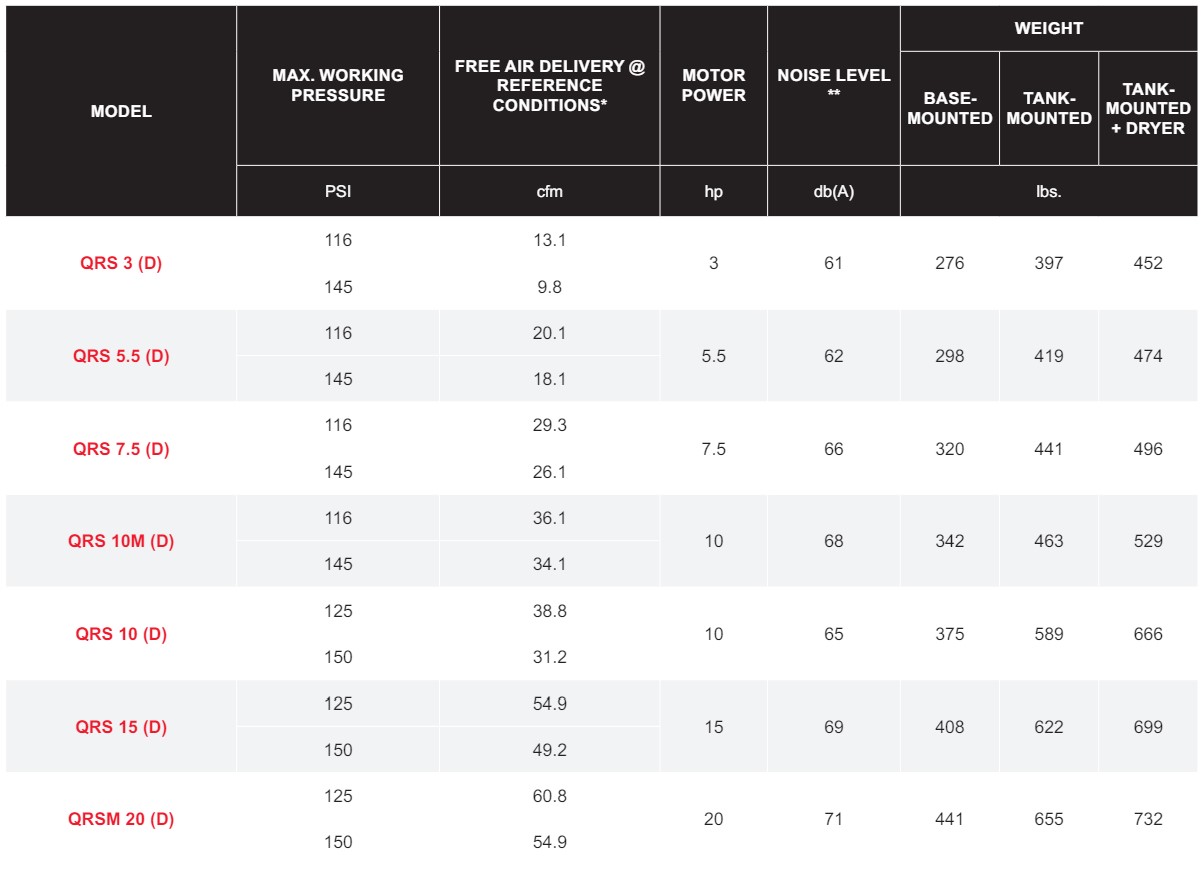

Chicago Pneumatic QRS Rotary Screw Air Compressor Tech Specs - 3 to 20M models

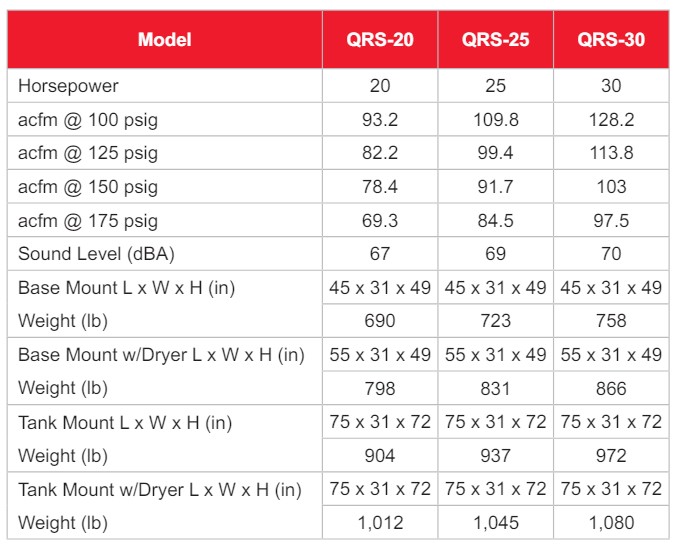

Chicago Pneumatic QRS Rotary Screw Air Compressor Tech Specs - 20 to 30HP models

The Chicago Pneumatic QRS Rotary Screw Air Compressor is housed in a low sound enclosure and comes with spin-on oil and separator filters as standard. It is ideal for a range of applications including tire shops, maintenance shops, paint shops, automotive and industrial light applications. The unit is designed for 100% continuous duty, running at lower RPMs to maximize runtime. Receivers for tank mount options are ASME/CRN certified, and the product is NEMA 1 electrical protected with a UL and cUL approved control panel.

The ES4000 basic controller is programmed for energy saving operation with intelligent shutdown. It features an icon based display with pressure and temperature settings/readings, running and working hours, service warnings, element outlet temperature reading, and automatic restart after voltage failure.

Chicago Pneumatic QRS 20 to 30 HP with Dryer Maintenance Kit
Chicago Pneumatic QRS 20 to 30 HP with Dryer Maintenance Kit

2,000 hour service interval.

$478.28
Chicago Pneumatic 20-25 HP QRS with Dryer Maintenance Kit
Chicago Pneumatic 20-25 HP QRS with Dryer Maintenance Kit

4,000hr service interval.

$903.54
Chicago Pneumatic 3 to 7.5 HP QRS Maintenance Kit
Chicago Pneumatic 3 to 7.5 HP QRS Maintenance Kit

4,000hr service interval.

In Stock
$316.80
Chicago Pneumatic 10 to 20 HP QRS Maintenance Kit
Chicago Pneumatic 10 to 20 HP QRS Maintenance Kit

2,000 or 4,000hr service interval.

Some Models in Stock
Starting at $130.00
Chicago Pneumatic 20 and 25 HP QRS Maintenance Kit
Chicago Pneumatic 20 and 25 HP QRS Maintenance Kit

4,000hr service interval.

$945.06
Chicago Pneumatic 20 to 30 HP QRS Maintenance Kit
Chicago Pneumatic 20 to 30 HP QRS Maintenance Kit

2,000 hour service interval.

In Stock
$259.15
Chicago Pneumatic 30 HP QRS Maintenance Kit
Chicago Pneumatic 30 HP QRS Maintenance Kit

4,000hr service interval.

$895.80
Chicago Pneumatic 30 HP QRS with Dryer Maintenance Kit
Chicago Pneumatic 30 HP QRS with Dryer Maintenance Kit

4,000hr service interval.

In Stock
$999.25
