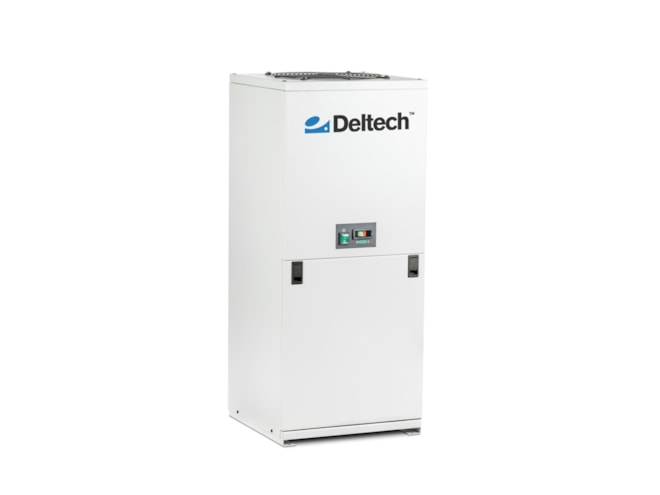

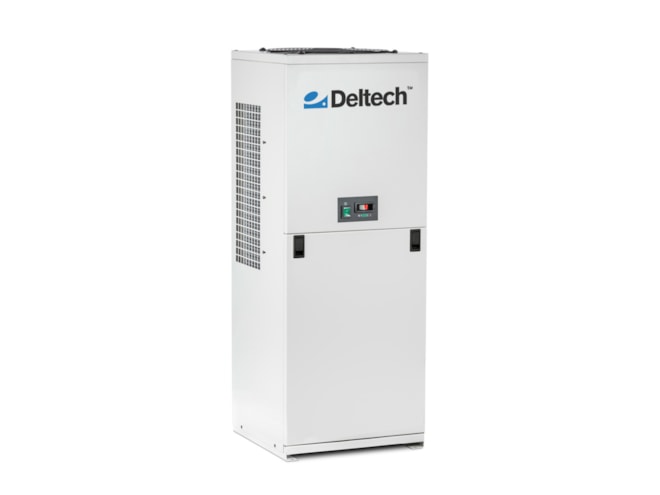

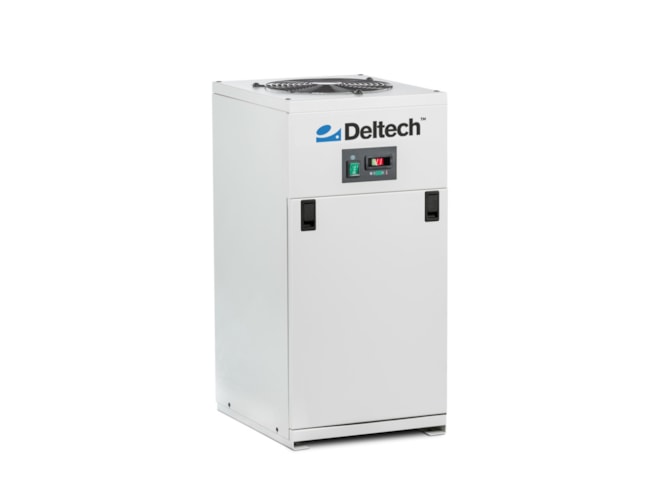

Deltech HTDN Series Non-Cycling High Inlet Temperature Refrigerated Air Dryer

Air Dryers accepting high temperature air up to 180°F with a 20 to 125 SCFM capacity, perfect for 5 to 30 HP two stage or piston air compressors .

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $1,926.40
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 20 to 125 SCFM capacity
  • 180°F max inlet air temperature
  • Hermetic refrigeration system
  • Air operated condensate drain
  • Two-stage separator/filter
  • Voltage
    • 115/1/60
    • 230/1/60
  • R-134a or R-407c refrigerant
  • ISO 8753 Class 6 moisture removal

The Deltech HTDN Series non-cycling high inlet temperature refrigerated air dryer is designed to efficiently dry compressed air with inlet temperatures up to 180°F. The HTDN Series features an adjustable timed electric drain, widely spaced inlet and outlet connections, lighted on/off switch, dew point temperature indicator, and fault light. The top mount fan allows installation in tight spaces and the bottom base rail has pre-drilled mounting holes for a secure floor mount. The stainless steel brazed plate heat exchangers with integral demister separator ensure optimal heat transfer for the life of the dryer and the two-stage separator/filter removes condensed oil and water over a wide range of flows.

Manufacturer Stock

Part Number Price Available
HTDN25
Show Configuration
$2,013.20 43 in stock
HTDN35
Show Configuration
$2,463.30 43 in stock
HTDN50
Show Configuration
$3,065.30 18 in stock
HTDN20
Show Configuration
$1,926.40 13 in stock
HTDN75
Show Configuration
$3,835.30 7 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 days". Click here to select options
