Deltech HGEN Series Non-Cycling Refrigerated Air Dryer

Compact dryer with a 5 to 1200 SCFM flow rate with air or water cooled aftercooler and filtration package option.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 5 to 1200 SCFM capacity
  • 38°F (3°C) pressure dew point
  • 232 or 250psig max pressure
  • 120˚F max temperature
  • Voltage
    • 115/1/60
    • 460/3/60
  • R-134a or R-407C refrigerant
  • CSA approval
  • ISO 8573-1 Class 4 to Class 5

Tech Specs

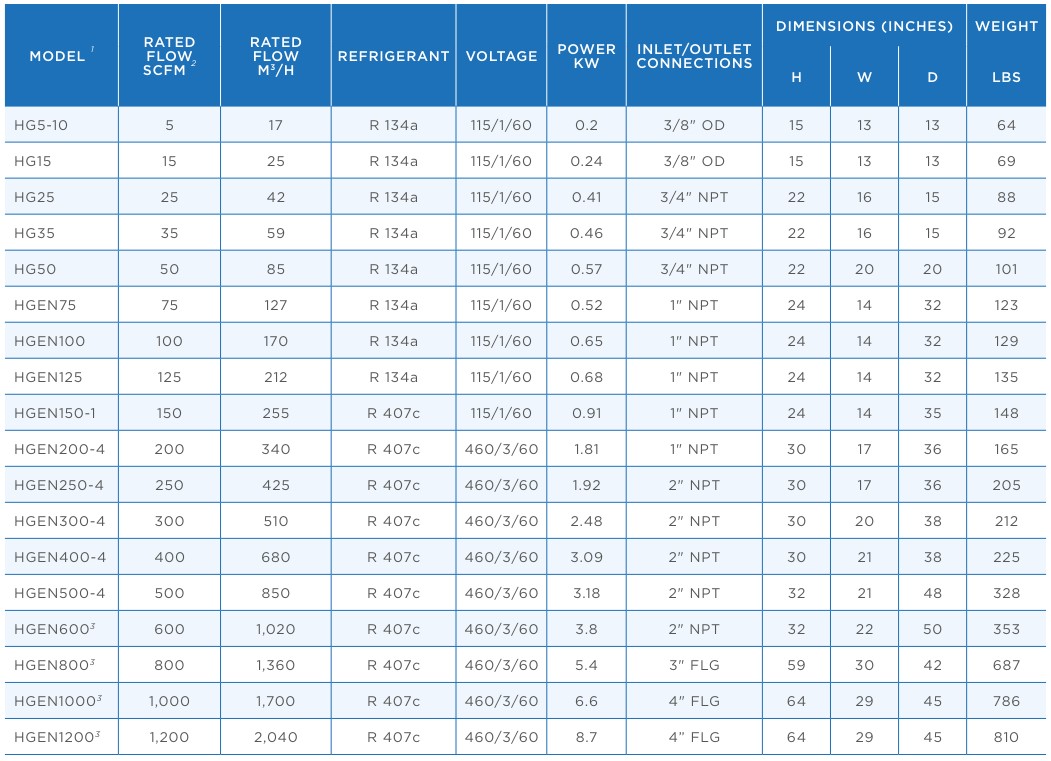

Deltech HGEN Series Non-Cycling Refrigerated Air Dryer Technical Specifications

The Deltech HGEN Series non-cycling refrigerated air dryer is space-saving and designed to keep air systems at a dry 38°F (3°C) pressure dew point. The HGEN Series 5 to 50 SCFM models have smooth bore, copper tube-on-tube heat exchangers that deliver low pressure dew point performance and a centrifugal separator that efficiently captures liquid condensate at varying inlet loads. The HGEN series 5 to 15 SCFM models feature a pneumatically operated float drain and lighted on/off switch, while the 25 to 50 SCFM models come with an electronic drain valve, lighted on/off switch, and dew point temperature indicator. The static condenser design provides quiet operation.

The Deltech HGEN Series 75 to 1200 SCFM models feature stainless steel, cross flow heat exchangers to optimize heat transfer and smooth, non-fouling channels to promote low pressure drop. Herringbone geometry stamped into the stainless steel plates creates turbulent flow for a self-cleaning effect. An increased calming zone and integral demister and separator captures liquid condensate and solid particles, which effectively removes condensate from 0 to 100% flow conditions without moisture carryover. The dryers have a dew point temperature display indicator to monitor inlet load conditions, timed electric condensate drain, panel mounted drain timer control, and a Y-strainer to protect the valve from rust and scale.

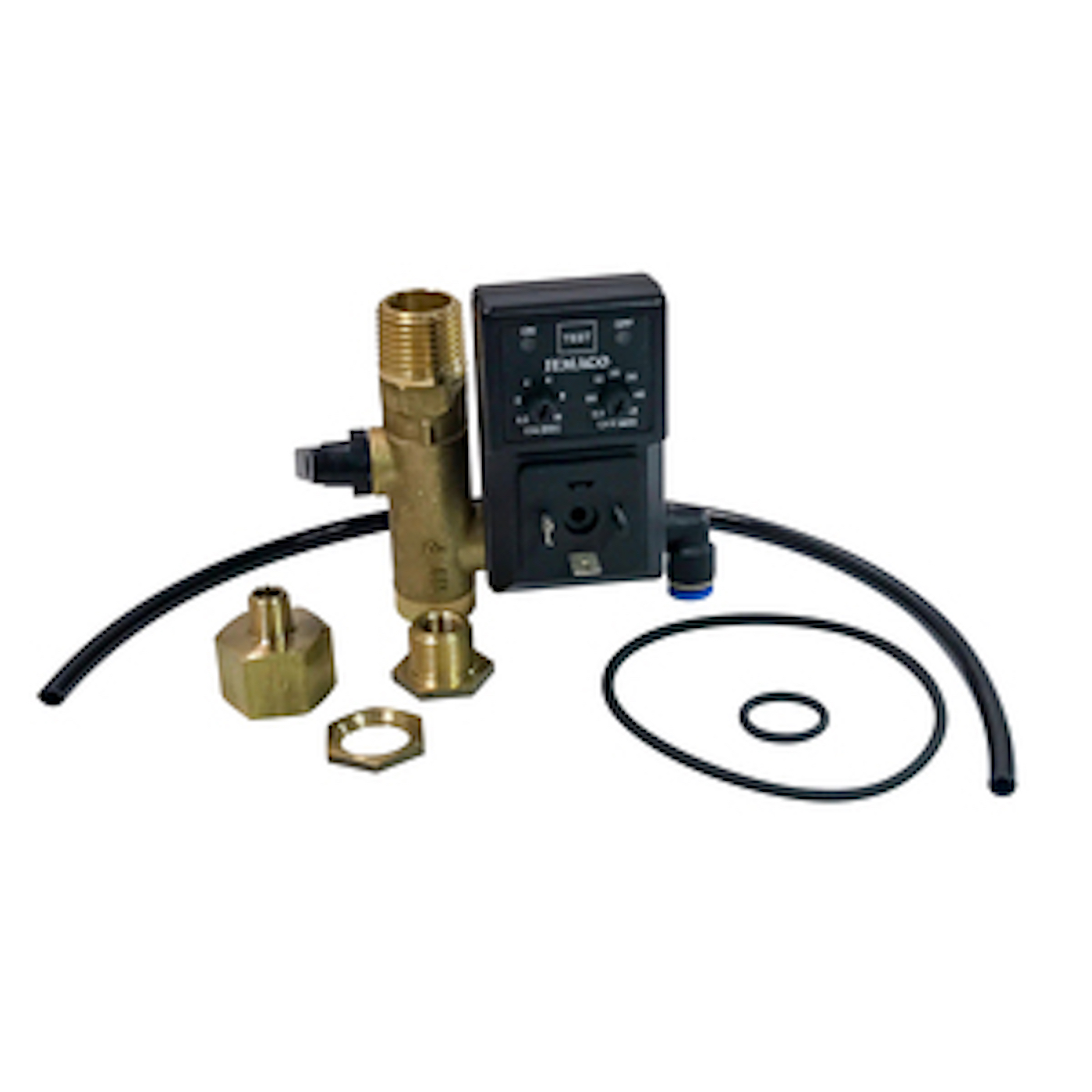

Deltech HG and HGEN Series Maintenance Kit
Deltech HG and HGEN Series Maintenance Kit

Maintenance kits for the Deltech HG and HGEN Series of refrigerated air dryers.

Some Models in Stock
Starting at $263.66
ToolImage
Service & Preventative Maintenance Contracts Available

Free estimates available.

Part Number Price Available
HGEN75
Show Configuration
$2,535.40 8 in stock
HG15
Show Configuration
$1,123.50 5 in stock
HG35
Show Configuration
$1,790.60 5 in stock
HG50
Show Configuration
$2,319.10 5 in stock
HG25
Show Configuration
$1,373.40 4 in stock
HGEN100
Show Configuration
$2,719.50 4 in stock
HGEN125
Show Configuration
$3,398.50 4 in stock
HGEN150
Show Configuration
$3,798.90 2 in stock
HGEN75-FP
Show Configuration
$3,329.90 2 in stock

Manufacturer Stock

Part Number Price Available
HG35
Show Configuration
$1,790.60 77 in stock
HG5-10
Show Configuration
$908.60 57 in stock
HG25
Show Configuration
$1,373.40 25 in stock
HGEN100
Show Configuration
$2,719.50 18 in stock
HG15
Show Configuration
$1,123.50 12 in stock
HGEN1000
Show Configuration
$14,760.20 7 in stock
HGEN200
Show Configuration
$4,769.80 7 in stock
HGEN800
Show Configuration
$13,337.80 7 in stock
HGEN1200
Show Configuration
$18,949.00 6 in stock
HGEN300
Show Configuration
$7,530.60 5 in stock
HGEN1000W
Show Configuration
$15,220.80 4 in stock
HGEN1200W
Show Configuration
$19,387.90 3 in stock
HGEN400
Show Configuration
$8,967.70 3 in stock
HGEN500
Show Configuration
$10,361.40 3 in stock
HGEN125
Show Configuration
$3,398.50 2 in stock
HGEN600
Show Configuration
$12,574.10 2 in stock
HGEN75
Show Configuration
$2,535.40 2 in stock
HGEN800W
Show Configuration
$13,807.50 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 days". Click here to select options
