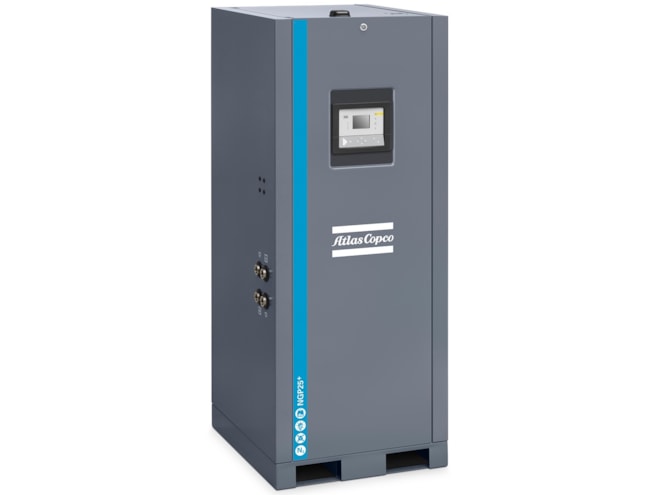

Atlas Copco NGP+ Cabinet Nitrogen Generator

Uses pressure swing adsorption (PSA) to provide nitrogen purity from 95% to 99.999%.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 41 to 140°F (5 to 60°C) ambient temperature
  • Continuous operation
  • 11 to 95 SCFM FND (Free Nitrogen Delivery)
  • 58.02 to 188.55psi pressure range
  • Designed for gas flows up to 3,000 Nm³/h
  • As low as -58°F (-50°C) dewpoint in nitrogen gas stream
  • % probe or PPM probe options available

The Atlas Copco NGP+ Cabinet Nitrogen Generator applies self-protective monitoring of the feed air quality, including temperature, pressure, pressure dewpoint, and automatic feed air blow-off in case of contamination. It has an air factor (air-to-nitrogen ratio) from 1.8 (95% N2) to 5.5 (99.999% N2). A minimum pressure valve with bypass nozzle provides for fast start-up, and eliminates risk of overflow and CMS damage.

A nitrogen flow meter is included as standard, and the oxygen sensor's zirconia design extendes its lifetime. The unit automatically regulates to the requested nitrogen pressure and purity, and privdes off-spec nitrogen flushing. Nitrogen is used instead of air in the pressurization phase, and no oxygen contamination of the CMS occurs before the adsorption phase starts. In the case of no nitrogen being consumed, the unit includes a stand-by mode.

Applications

  • Food and beverage
  • Metal and manufacturing
  • Electronics
  • Pharmaceutical
  • Oil & gas
  • Breweries
  • General industries

Manufacturer Stock

Part Number Price Available
8102317388
Show Configuration
$27,940.00 4 in stock
8102317503
Show Configuration
$40,892.00 3 in stock
8102317628
Show Configuration
$62,188.00 2 in stock
8102317743
Show Configuration
$83,069.00 2 in stock
8102317362
Show Configuration
$27,940.00 1 in stock
8102317461
Show Configuration
$34,949.00 1 in stock
8102317545
Show Configuration
$46,962.00 1 in stock
8102317669
Show Configuration
$72,032.00 1 in stock
8102317826
Show Configuration
$96,677.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 days". Click here to select options
