Champion PL-Series Pressure Lubricated Two Stage Piston Air Compressor

Pressure lubricated air compressor with loadless starting, ASME inter-stage pressure relief valve, and rated up to 250psi.

Champion PL-Series Two Stage Piston Air Compressor - Horizontal Tank

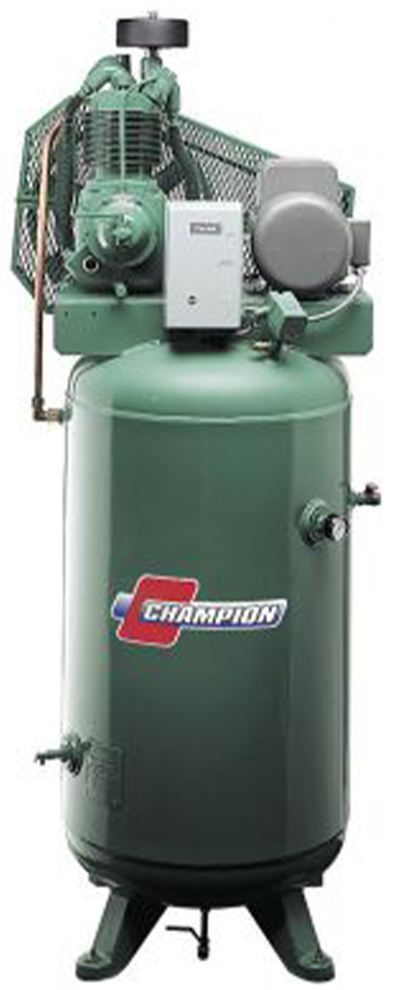

Champion PL-Series Two Stage Piston Air Compressor - Vertical Tank

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.

Starting Price: $5,255.85

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part No. {{ calcPartNumber }}

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

Features

Mounted NEMA 1 control panel
ODP NEMA 1,760 RPM electric motor
5 to 25 HP models available
Start/stop pressure switch control
ASME coded receiver
- 60, 80,120, and 240 gallon options (depending on model selected)
- California Code Compliant Receivers
Enclosed Belt Guard
10 micron industrial grade intake filter
Factory filled with AEON lubricant

The Champion PL-Series two stage piston air compressor is designed to operate in extreme duty applications. The PL-Series is a true industrial use compressor as it can operate up to 250psi and can work in off-level operations. It features domed pistons for better efficiency, disc valves for minimized blow-by, and a positive displacement oil pump that provides lubricant to all crucial parts of the compressor.

The PL-Series is designed for durability and long life. The crankshaft and connecting rod bearings are pressure lubricated, the hydraulic unloader with factory set pilot valve enables loadless starts and low oil pressure protection, the included oil pressure gauge allows for easy pressure monitoring, and the replaceable babbit bearings make repairs easy and affordable.
