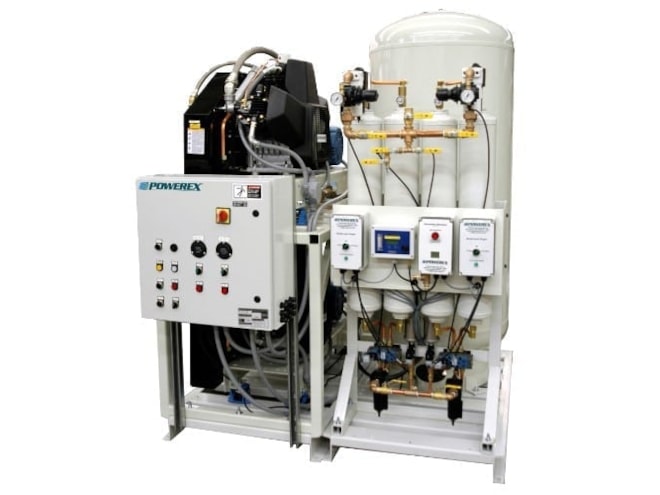

Powerex Medical Reciprocating Piston System

Duplex system with premium NFPA control panel.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Oilless construction
  • Corrosion resistant air receiver
  • Redundant medical desiccant air dryers with purge control
  • Medical control panel
  • Dew point and CO monitors
  • Fully compliant with NFPA 99
  • Manufactured in ISO 9001:2015 certified facilities

The Powerex Medical Reciprocating Piston System is designed to be the air compressor and air receiver component of a medical breathing air system for hospitals and medical institutes. When used in conjunction with properly sized dryers that meet dew point and flow specifications, along with an appropriate filter and monitor package, the system can comply with requirements in NFPA 99 for Category 1 applications.

The only field connections required are system intake, exhaust, and power connection at the control panel. All interconnecting piping, wiring, and vibration isolation pads are included with the system. Each compressor is belt-driven reciprocating, single-stage (1-3HP), two-stage (5-15HP), single acting, air-cooled oilless design with no oil needed for operation.
