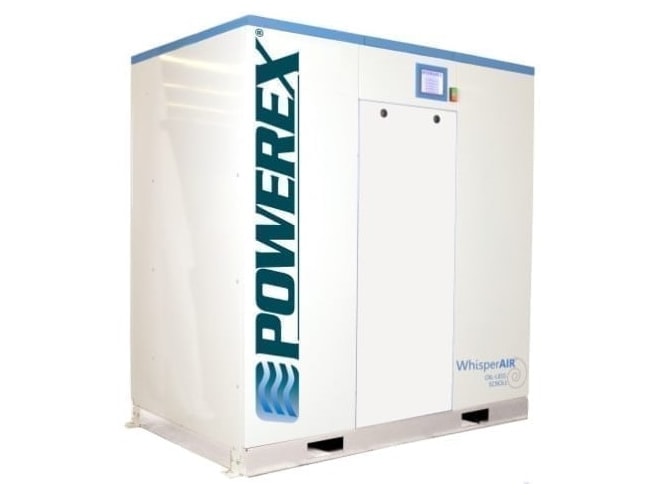

Powerex Laboratory Scroll Enclosure System
Simplex oilless scroll system.
Overview
Features
- 115psig maximum pressure rating
- ASME receiver
- UL508A control panel
- Vibration isolation pads and flex connectors included
- Corrosion resistant air receiver
- NEMA 12 enclosure
- Manufactured in ISO 9001:2015 UL certified facilities
- Certified ISO 8573-1:2010 "Class Zero" for oil content
Description
The Powerex Laboratory Scroll Enclosure System is designed to provide clean, dry air for applications where the quality of the compressed air is critical and a quiet enclosed compressor set is desired. Each system includes multiple oilless scroll compressors in a sound reducing enclosure, corrosion resistant air receiver, desiccant air dryers with purge control, a control panel and integrated dew point monitor.
Systems are also equipped with dry type inlet filters, aftercoolers internal to the enclosure, check valves and ball valves for each pump. The air receiver tank has an automatic electric drain and manual back up drain. The twin tower desiccant dryers are installed with ball valves and sized so that one dryer can meet full system flow needs. Final regulators are factory installed and set for a stable final pressure. A dew point monitor is included to provide feedback and control of the dryer option.
The rotary scroll compressor design permits a continuous 100% duty cycle with no oil separation, oil filtration, or inlet valves required.
