Ingersoll Rand R-Series Fixed Speed Rotary Screw Air Compressor

5 to 15 hp, rotary screw air compressor with tri-voltage, TEFC premium efficiency motor and all-in-one airend.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Baseplate or tank mounted
    • 80 or 120 gallon tanks available
  • 41.5 to 57.5 CFM capacity available
  • Tri-voltage 200-230/460V 3-phase motor standard
    • 575V 3-phase and 208/230V 1-phase options available on some models
  • Xe-50M controller standard (Xe-70M controller options available)
  • Standard package pre-filters
  • Manual load/unload control
  • 2.1in monochrome display
  • Quiet enclosure down to 69dBA
  • Optional Total Air System (TAS):
    • General purpose and high-efficiency filters
    • Integrated dryer
    • 3-in-1 heat exchanger

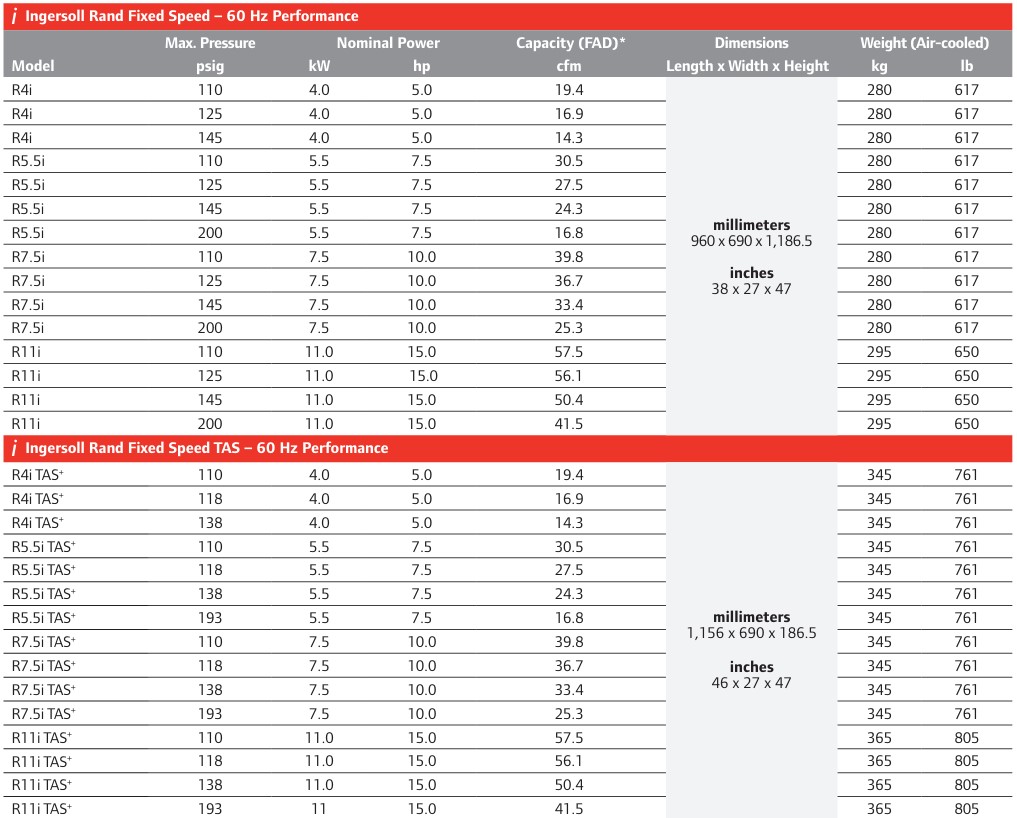

Tech Specs

Ingersoll Rand R-Series Fixed Speed Rotary Screw Air Compressor Technical Specifications

The Ingersoll Rand R-Series fixed speed rotary screw air compressor delivers optimum performance while providing a compact package for easy installation. Leak-free PTFE hoses with O-ring face seals, a next-generation airend, and a reduced number of components improve overall reliability in a compact design that fits virtually any application environment.

The R-Series features a TEFC Tri-Voltage (208-230/460 V) motor that allows the unit to adapt to the voltage requirements of the customer. The addition of an improved cooler design minimizes thermal expansion stresses and the vertically stacked drive components improve balance and simplify tensioning the belt drive system. V-Shield technology utilizes PTFE hoses on all oil-carrying lines as well as O-ring face seal connections, minimizing leaks and increasing hose lifespan.

The R-Series Total Air System (TAS) option provides clean, dry air in a single package. These complete compressor and dryer systems come with integrated controls, water separators, drain ports, 3-in-1 heat exchanger, and filters. The onboard dryer controller allows for adjustment of critical operating parameters and is integrated so that the dryer cycling is controlled by the compressor operation.
