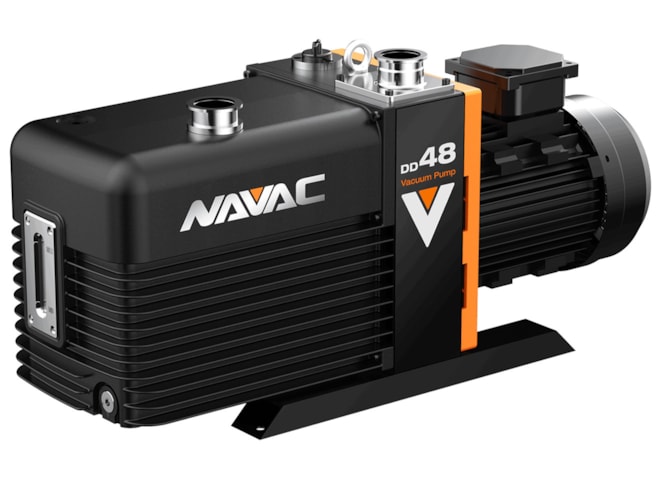

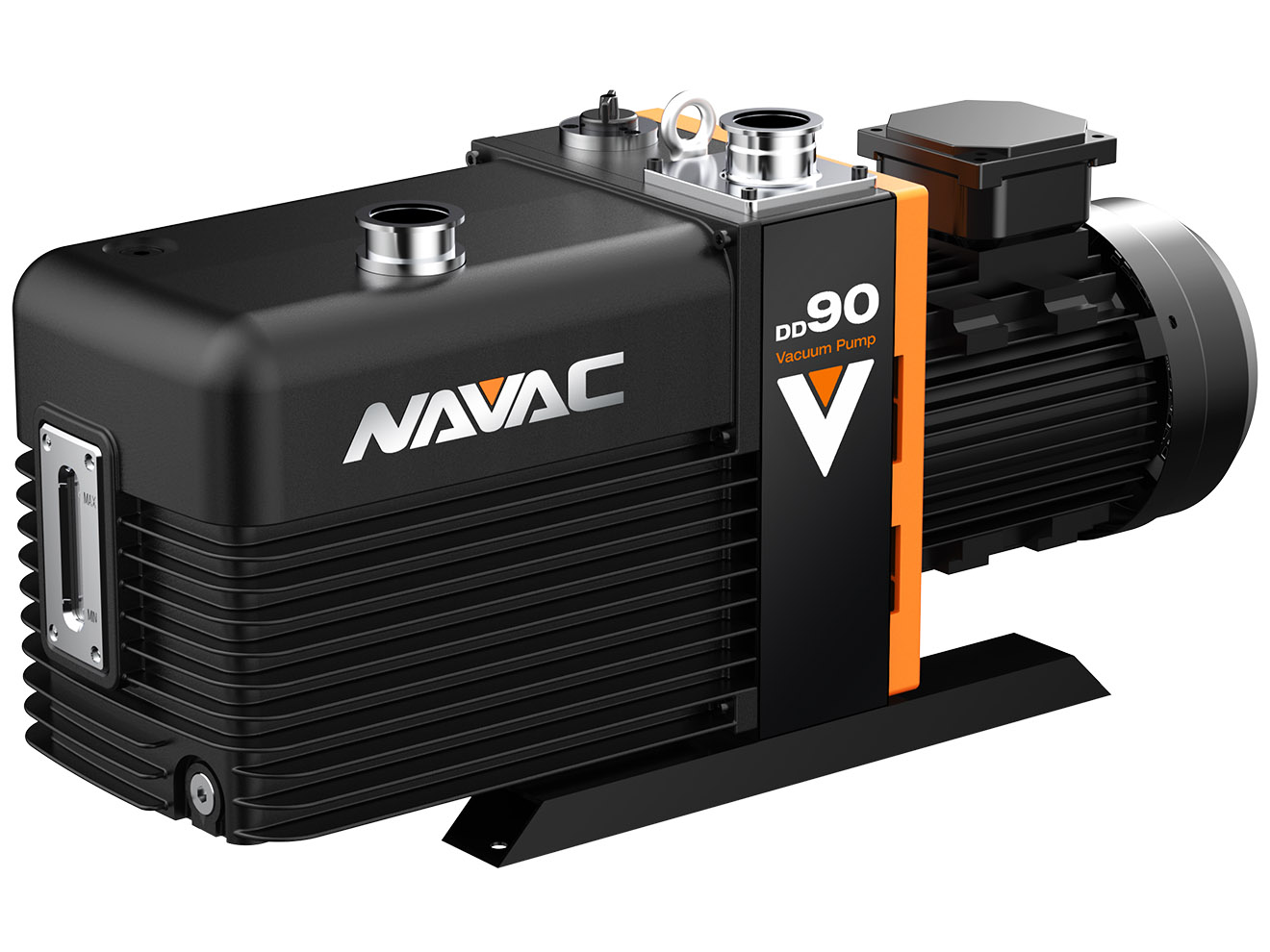

NAVAC DuoDrive Series Oil-Sealed Rotary Vane Vacuum Pump

Dual-stage vacuum pump equipped with a traditional AC motor, 33 or 46 CFM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $8,400.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Pumping Speed:
    • 33 or 46 CFM
  • Ultimate Total Pressure without Gas Ballast: 6x10-3 Torr
  • Ultimate Total Pressure with Gas Ballast: 6x10-2 Torr
  • cUL Approved
  • Two Shift Adjustable Gas Ballast Valve
  • Anti-suck back design
  • Forced oil circulation system
  • KF40 Flange inlet/outlet connections
  • 220-230/460/3/60 voltage

The NAVAC DuoDrive Series Oil-Sealed Rotary Vane Vacuum Pump is a dual-stage vacuum pump equipped with a traditional AC motor. The DuoDrive has a proprietary coating protects the pump from the most demanding industrial applications.
