NUAIR Sirius Series Rotary Screw Air Compressor
10 to 60 HP oil lubricated belt-driven fixed speed compressor, 145 PSI pressure rating, base or tank mounted configurations.
-
NUAIR Sirius Series Rotary Screw Air Compressor - 10 to 20 HP Tank Mount with Dryer -
NUAIR Sirius Series Rotary Screw Air Compressor - 10 to 20 HP Base Mount -
NUAIR Sirius Series Rotary Screw Air Compressor - 25 to 60 HP Base Mount
Images may not represent all possible configurations of this product.
Highlights...
- By NUAIR
- Factory Warranty and Support Available
- Excluded From Free Shipping
- Local Service Available on All Brands
Overview
Features
- 10 to 60 HP
- 34.6 to 230 CFM
- 145 PSI max pressure
- Tank mounted with air dryer option available (10 to 20 HP only)
- 72 gallon receiver tank for 10 HP
- 132 gallon receiver tank for 15 and 20 HP
- Poly-V belt drive
- Star-delta starter
- LOGIN Series Controller
75 and 100 HP models are available. Please contact us for additional information and pricing.

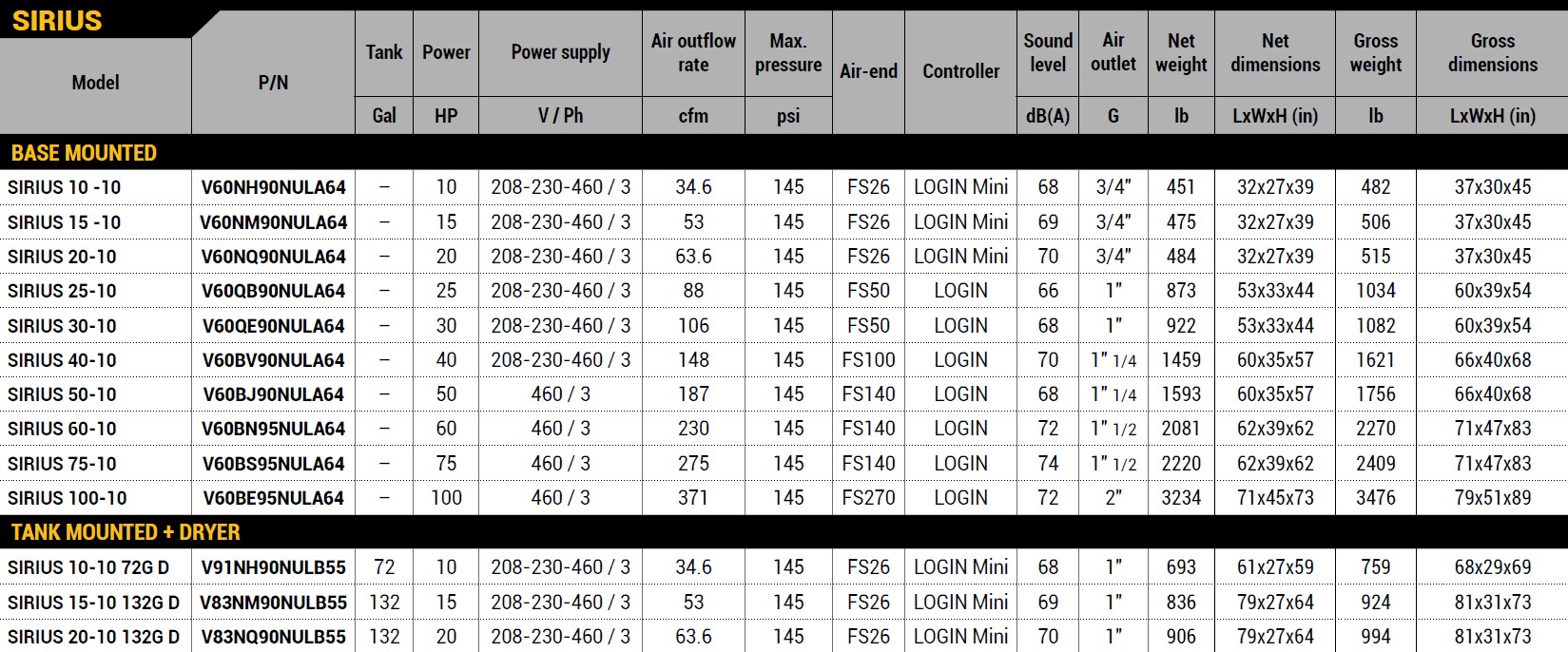

Tech Specs
Due to the complexity of the data presented in some of the images below, describing them accurately in text is challenging. If you require further assistance, please contact one of our engineers for more detailed information.
Description
The NUAIR Sirius Series Rotary Screw Air Compressor is an oil lubricated belt-driven fixed-speed compressor available in 10 to 60 HP models (75 and 100 HP are available by request). The Sirius Series features the LOGIN and LOGIN Mini electronic controllers that manage all the compressor functions and enable system diagnosis. The thermostatically controlled radial fan ensures optimum operating temperature, even in the most severe ambient conditions. Power transmission between the air-end and electric motor
is done by the Poly-V belt, which is characterized by a long service life and minimal maintenance.
