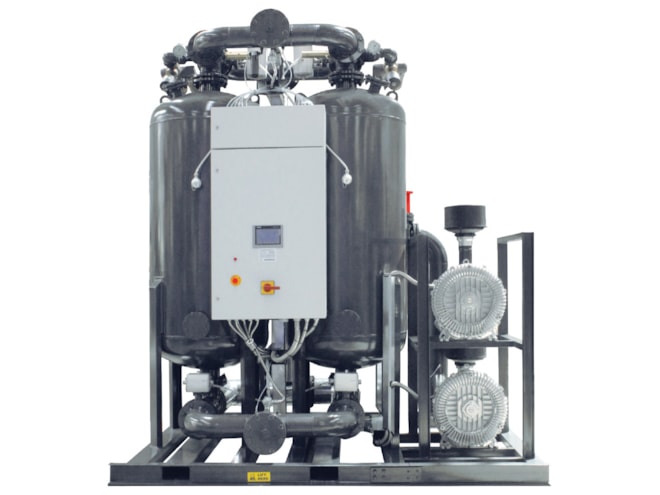

OZEN ODBP Blower Purge Heated Desiccant Air Dryer

500 to 10000 SCFM, -40°F dew point, 200 PSIG max working pressure.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 500 to 10000 SCFM
  • -40°F dew point
  • 120°F max inlet air temperature
  • 200 PSIG max working pressure
  • Siemens touchscreen PLC included
  • Nema 4X standard
  • Stainless Steel tubing standard
  • Filters included (500 to 1500 SCFM only)
    • 1 micron prefilter
    • 0.01 micron post filter
    • 5 micron particle filter
  • 460/3/60 voltage

The OZEN ODBP Blower Purge Heated Desiccant Air Dryer features a high-efficiency heater and a centrifugal blower motor that performs the regeneration of the desiccant with no air loss. In the automatic system, the motor draws the atmospheric air in and dries it by passing it through the heater. The hot air flows in the reverse direction of the dryer air. Advanced electronic control system saves energy by enabling the adjustment of the dew-point and the regeneration.
