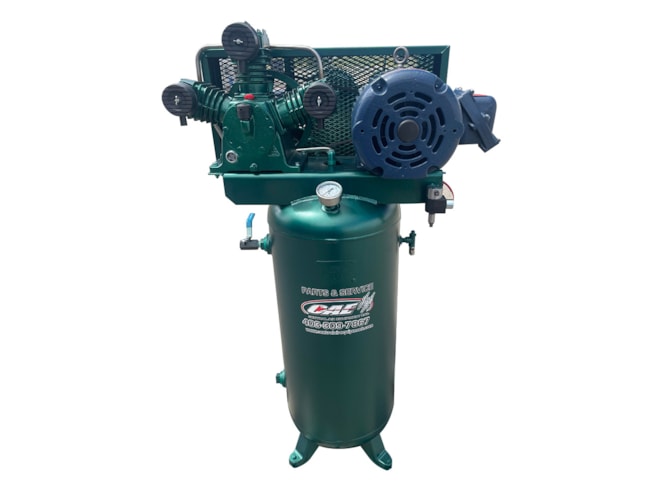

Central Air Equipment Hazardous Location Piston Air Compressor

0.75 to 7.5 HP tank mounted piston compressor approved for Class 1 Div 2 hazardous location use.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Single Stage Models:
    • 0.75 HP: 4.05 CFM at 100 PSI, 125 PSIG max pressure
    • 2 HP: 10.9 CFM at 100 PSI, 125 PSIG max pressure
    • 3 HP: 17.7 CFM at 100 PSI, 125 PSIG max pressure
  • Two Stage Models:
    • 5 HP: 17.94 CFM at 100 PSI, 175 PSIG max pressure
    • 7.5 HP: 23.6 CFM at 100 PSI, 175 PSIG max pressure
  • All models are Class 1 Div 2
  • 230/460/3/60 voltage

The Central Air Equipment Hazardous Location Piston Air Compressor is designed for Class 1 Div 2 hazardous location use. Available in single-stage (0.75 to 3 HP) and two-stage (5 and 7.5 HP) with capacities from 4.05 to 23.6 CFM at 100 PSI. The single-stage models have a max pressure rating of 125 PSI and the two-stage models have a max pressure rating of 175 PSI.
