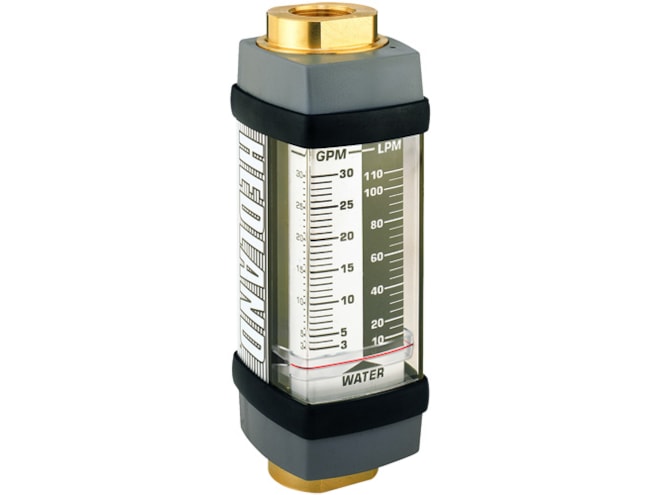

Hedland Water and Other Fluids Flow Meter

Variable area flow meter for water and other fluids at temperatures of up to 240°F.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $297.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 360° rotatable guard/scale
  • Easier-to-read linear scale
  • Temperature up to 240°F
  • 1/4" to 3" sizes available
  • Accuracy ±2% full scale
  • Repeatability ±1%
  • Pressure ratings:
    • Brass: 3500 PSI
    • Stainless steel: 6000 PSI

The Hedland Water and Other Fluid Flow Meter is a low-cost and durable variable area flow meter. These in-line flow rate indicators are industrial-class and can be used in high-temperature water and other fluids. It features quality metal construction in brass or stainless steel. You can choose from six port sizes from 1/4" to 3".

These variable area flow meters can be used in applications in which the temperature ranges from -20 to 240°F. The stainless steel flow meters are pressure rated for 6000 PSI (5000 PSI for 3/4" to 1 1/2" sizes) with a 3:1 safety factor. The brass flow meters are pressure rated for 3500 PSI with a 3:1 safety factor.
