Overview

Features

  • 35 HP motor
  • 50 Amp Model:
    • 130.3 to 191.5 CFM
    • 87 to 174 PSI pressure setting
    • 72.5 PSI minimum effective receiver pressure (unloaded)
    • 174 PSI maximum effective receiver pressure (unloaded)
  • 32 Amp Model:
    • 77.1 to 126.9 CFM
    • 87 to 174 PSI pressure setting
    • 72.5 PSI minimum effective receiver pressure (unloaded)
    • 174 PSI maximum effective receiver pressure (unloaded)
  • 16 Amp Model:
    • 22.9 to 52.1 CFM
    • 87 to 150 PSI pressure setting
    • 72.5 PSI minimum effective receiver pressure (unloaded)
    • 152 PSI maximum effective receiver pressure (unloaded)
  • C80 Screw element
  • XC2003 controller
  • PACE functionality
  • 9.25 gallon air receiver tank

Description

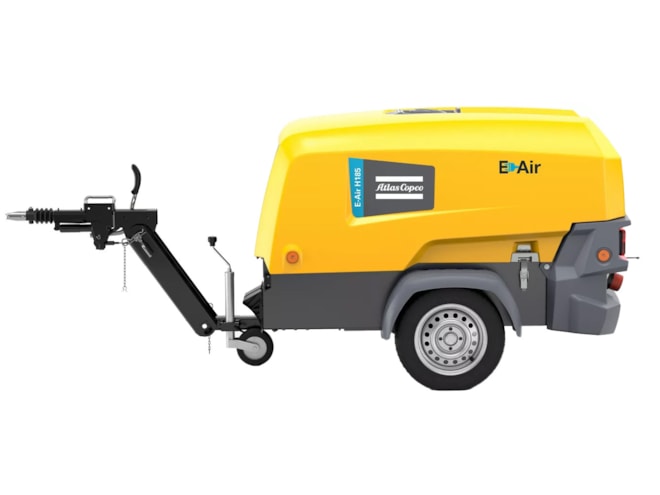

The Atlas Copco E-Air Series H185 Variable Speed Rotary Screw Air Compressor is a single-stage, oil-injected, rotary screw type air compressor, powered by an Atlas Copco electric motor with Class H insulation powering up to 7150 rpm.

The H185 features the C80 Screw element in its air end combined with an Atlas Copco integrated permanent magnet motor, cooling circuit, air/oil separation, and control systems. The E-Air Series now features PACE functionality coupled with the XC2003 controller. This technology enables multiple pressure and flow settings, ensuring you match air flow and pressure to your application needs.
