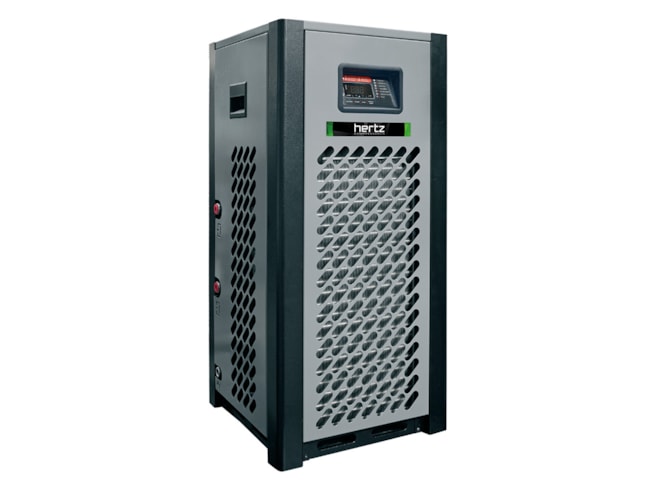

Hertz HRD H Series High Temperature Air Dryer
High inlet temperature air dryer with a maximum temperature of 240°F and a maximum capacity option of 100 CFM.
![Hertz HRD H Series High Temperature Air Dryer](/assets/herts-hrd-h-refrigerated-high-temperature-dryer.jpg?width=660&height=495&scale=upscalecanvas&bgcolor=fff)
Highlights...
Overview
Features
- Digipro controller
- R134a refrigerant
- Maximum inlet temperature: 240°F
- Maximum working pressure: 230 PSI
- Capacity options: 15 to 100 CFM
- 1/2in or 3/4in NPT connection options
- Automatic drain and integrated condenser
- Independent air cooled aftercooler
Description
The Hertz HRD H Series is a line of high temperature air dryers fitted with an aftercooler to lower the inlet temperature of the compressed air, ensuring effective dew-point management. The dryers are capable of withstanding inlet temperatures of 240°F and ambient temperatures of 120°F. Additionally, these dryers have a maximum operating pressure of 230 PSI and maximum capacity of 100 CFM. They are equipped with an automatic drain and integrated condenser, as well as utilizing the environmentally friendly R134a refrigerant. Lastly, these dryers feature a moisture separator and are insulated.
