Champion CHWS Series Oil and Water Separator

50 to 250 CFM with advanced molecular filtration and internal decompression chamber.

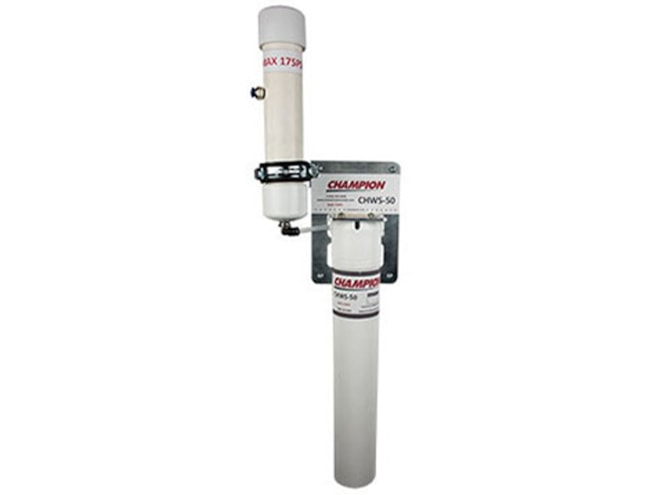

Champion CHWS Series Oil and Water Separator - 50 CFM model
Champion CHWS Series Oil and Water Separator - 100 CFM model
Champion CHWS Series Oil and Water Separator - 250 CFM model

View Company Reviews

Highlights...

By Champion
Made in the USA
FREE Shipping on orders of $1,000 or more
Factory Warranty and Support Available
Local Service Available on All Brands

Features

50 to 250 CFM
Spin on cartridge design (50 and 100 CFM models)
Install kits available

The Champion CHWS Series Oil and Water Separator consists of three models that cover 50, 100, and 250 CFM. All three models are simple to install, require minimal space, and provide <10 ppm condensate carryover.

The two smaller CHWS units feature spin-on / spin-off cartridges allowing easy and clean maintenance. The cartridges are filled with an enhanced alumina silicate substrate media bed that prolongs the unit's life. When the unit requires maintenance, spin on a new cartridge.

The CHWS-250 uses a different strategy to accomplish the same goal of removing lubricant particles from condensate. Instead of replaceable cartridges, the CHWS-250 features a "use up and replace" design. When the molecular sieve utilized in the active filtration process is spent, replace it with a new unit.

Optional install kits include 14mm tubing, mounting brackets, 14mm x 1/4" tube adapters, straight union connectors, 1/4" MNPT x 1/4" poly adapters, and 25' of 1/4" poly tubing.
