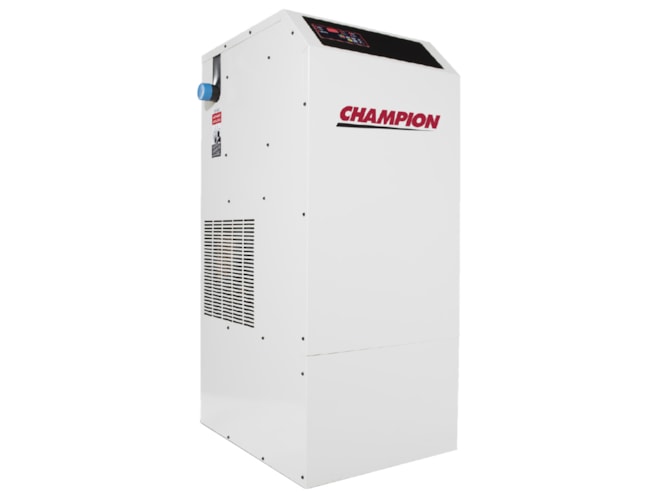

Champion XCCY Series Cycling Refrigerated Dryer
10 to 1200 CFM cycling dryer provides ISO 8573-1 air quality, class 4 to 5 pressure dew point.
Overview
Features
- 10 to 1200 CFM
- 120°F max inlet air temperature
- Maximum Operating Pressure:
- 200 to 800 CFM with standard solenoid drain: 300 PSIG
- 200 to 800 CFM with no air loss drain: 220 PSIG
- 1000 to 1200 CFM: 220 PSIG
- ISO 8573-1 air quality, class 4 to 5 pressure dew point
- Pre-filter and after-filter package option available
Description
The Champion XCCY Series Cycling Refrigerated Dryer features a patented heat exchanger design, providing high heat transfer with low pressure drop due to the short flow length. The XCCY Series heat exchanger presents a flow area three to five times that of an equivalent copper tubing exchanger, and the self-cleaning design reduces the potential for fouling.
The XCCY Series uses centrifugal separation to remove moisture from the chilled air. Separation occurs at the coldest point in the system using centrifugal acceleration, then expands into an area of low velocity containing a sump, and change of airflow direction. The result is highly efficient moisture removal, providing dry, clean air under all operating conditions.
