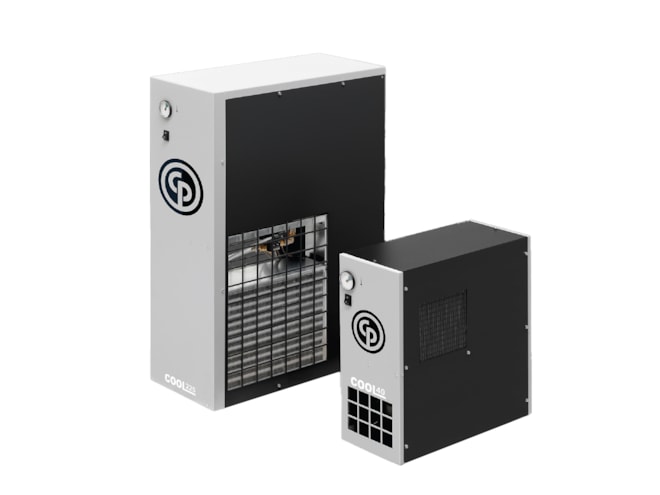

Chicago Pneumatic COOL Compact Non-Cycling Refrigerated Dryer
Fully automatic refrigerated dryer unit with up to 272 SCFM capacity. 115/1/60 or 230/1/60 voltages and 1/2" through 1-1/2" NPT connections.
Highlights...
- By Chicago Pneumatic
- FREE Shipping on orders of $1,000 or more
- Factory Warranty and Support Available
-
Manufacturer has some models in stock. View available part numbers.
Contact an Expert
Tara Samuel
Order Management Specialist - 10 years at Compressor World
Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.
Need Help?
Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST
Overview
Features
- Capacities:
- 12 to 272 SCFM
- Heat exchanger material(s):
- 12-64 SCFM: Brazed Plate
- 76-272 SCFM: Aluminum
- Voltage(s):
- 12-106 SCFM: 115/1/60
- 127-272 SCFM: 230/1/60
- Refrigerant(s):
- 12-145 SCFM: R513A
- 184-272 SCFM: R410A
- Dimensions:
- 12-76 SCFM: 9" L x 22" W x 22" H
- 106 SCFM: 23" L x 56" W x 56" H
- 127-272 SCFM: 31" L x 71" W x 99" H
- Max pressure(s):
- 145-272 SCFM: 188 PSIG
- 12-127 SCFM: 232 PSIG
- Max inlet: 131°F
- Max ambient: 113°F
- Min ambient: 41°F
- Dewpoint: 45°F
- Eliminates air line purging
- Plug and play installation
- Hot gas bypass protection
- cUL approved
Description

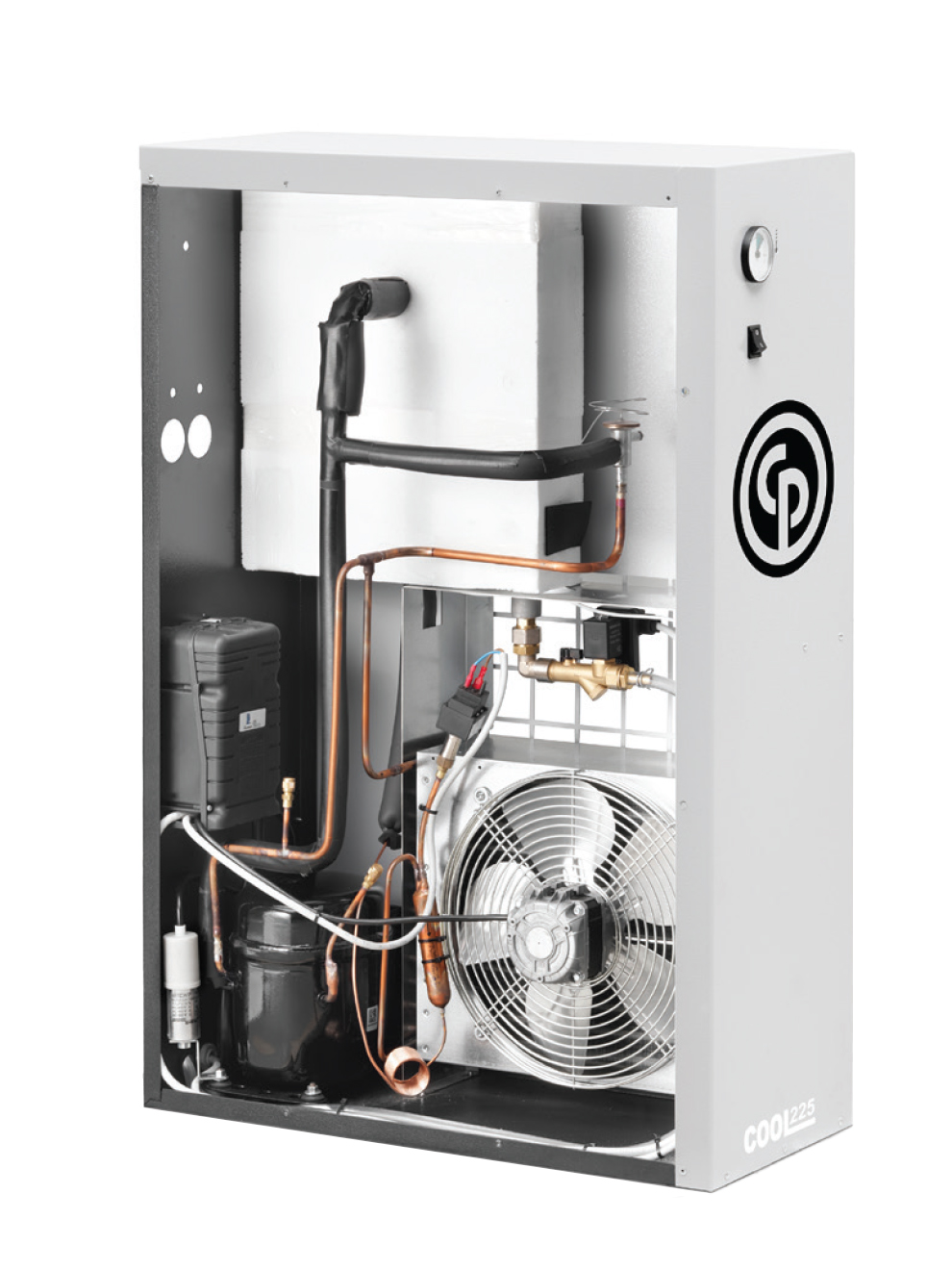

The Chicago Pneumatic COOL Compact Non-Cycling Refrigerated Dryer is a small footprint solution for fully automated condensate removal in compressed air applications including but not limited to: tire inflation, spray painting, inject molding, pneumatic tools and control systems. Low current requirements mean COOL units can share electrical lines. Elimination of water, oil and dirt from air systems reduces finished product defects and increases longevity of tools. 12 to 272 SCFM capacity offerings, with a 45°F dewpoint. Unit is designed with a brazed plate heat exchanger for 12 through 64 SCFM, and aluminum for 76 through 272 SCFM capacities. 1 Year warranty.
Documents
In Stock
Manufacturer Stock
This stock is typically available to ship in 1 - 3 working days
| Part Number | Price | Available | |
|---|---|---|---|
|
4102005021 |
Call for pricing | 2 in stock | |
|
4102003546 |
Call for pricing | 1 in stock | |
|
4102003547 |
Call for pricing | 1 in stock | |
|
4102005020 |
Call for pricing | 1 in stock | |
|
4102005023 |
Call for pricing | 1 in stock | |
|
4102005024 |
Call for pricing | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Click here to select options
